Gear Operated Brass//Bronze/Copper/Stainless Steel Oxygen Ball Valve

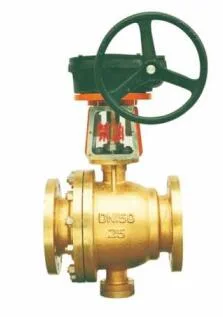

Gear Operated Brass//Bronze/Copper/Stainless Steel Oxygen Trunnion Ball Valve Product Description  name of  commodity: Class 150~600 LB  Floating Ball Valve Nominal diameter:1/2"-12" Nominal pressure:150Lb-600Lb , 10K-40K Applicable temperature: -196~250ºC, 250~425ºC Available material: CS, SS, FS,304,316,316 L, CF8, CF8M ,  LCB, LCC, LF2, BRASS, BRONZE, COPPER, C95800, C83600,  Driving type :Electric, Pneumatic, Worm wheel, manual, hydraulic .(Note: Pictures of products for worm gear drive) Applicable medium: water, gas, oil product, Food, medicines, chemicals natural gas and corrosive medium as acid, alkali, etc.   Gear Operated Brass//Bronze/Copper/Stainless Steel Oxygen Trunnion Ball Valve  Standards compliance:                                       Design and Manufacture: API 608, API 6D                                       Face to face(end to end): ANSI B16.10, API 6D                                       Flanged connection: JIS B2020                                       Fire-safe: API 607,API 6FA                                       Butt welded end: ANSI B16.25                                       Test and inspection: API 598,API 6D   H59/B62/AB2/BC6/C83600/C84400/C95800 Brass/Bronze/Gunmetal Threaded/Flanged Floating Ball Valve Advantage: 1. The fluid resistance is small, its resistance coefficient with section of equal length. 2. Simple structure, small volume, light weight. 3. Compact and reliable, the widespread use of plastic ball valve sealing surface of materials, good sealing, also has been widely used in the vacuum system. 4. Easy to operate, open and close quickly 5. Easy maintenance, simple structure of ball valve, sealing ring, which generally remove replacement is more convenient. 6. In the fully open or fully closed, the ball and seat sealing surface and the dielectric isolation, medium through, can not cause the valve sealing surface erosion. 7. Applicable scope is wide, size from small to several millimeters, big to a few meters, from high vacuum to high pressure can be applied.       Gear Operated Brass//Bronze/Copper/Stainless Steel Oxygen Trunnion Ball Valve dimensions  DimensionsClass 150Sizeinch1/23/411-1/222-1/23468L-RFmm108117127165178191203229394457L1-BWmm140152165190216241283305457521L2-RTJmm--140178191203216241406470Bmm13192538516476102152203Hmm65708095110135145170235275Kmm150155160180200225325350500600WT.Kg34581221264380155  DimensionsClass 300Sizeinch1/23/411-1/222-1/23468L-RFmm140152165190216241283305403502L1-BWmm140152165191216241283305457521L2-RTJmm151165178203232257298321419518Bmm13192538516476102152203Hmm708590105120145160195250290Kmm155160180200225325350500600700WT.Kg357131528325510517    CLASS 150~300 Floating ball valve materials MaterialsNO.Part nameMaterial13HandleCarbon steel12Lock nutCarbon steel11Gland nutCarbon steel10Thrust washerPTEF/NYLON09Gland bushStainless steel08StemStainless steel  NO.Part nameWCBLCB07Stud and nutA193 Gr B7/A194 Gr 2HA320 Gr L7/A194 Gr 406PackingGraphite/ptfeGraphite/ptfe05Ball seatPTFE/RPTFE/NYLONSPTFE/RPTFE/NYLON04GasketGraphite/spiral woundGraphite /spiral wound03BallA182 F6aA182 F30402R-bodyA216 Gr WCBA352 Gr LCB01L-bodyA216 Gr WCBA352 Gr LCB  NO.Part nameCF8CF8M07Stud and nutA193 Gr B16/A194 Gr 4/7A193 Gr B7/A194 Gr 2H06PackingGraphite/ptfeGraphite/ptfe05Ball seatPTFE/RPTFE/NYLONPTFE/RPTFE/NYLON04GasketGraphite /spiral woundGraphite /spiral wound03BallA182 F304A182 F31602R-bodyA351 Gr CF8A351 Gr CF8M01L-bodyA351 Gr CF8A351 Gr CF8MThank you for visiting our website, if you have any doubts you can feel free to contact us ,we will try our best to provide you with quality service. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
