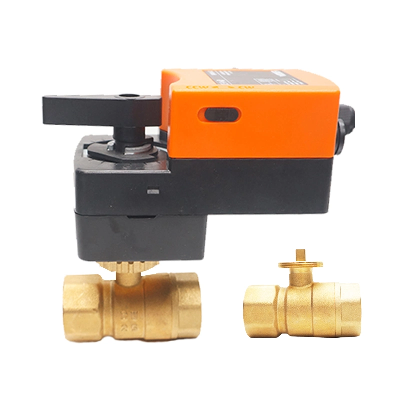

Winvall 6n. M 220V Motorized Ball Valve Electric Control Float Valve

DescriptionWinner motorized control ball valve consists of WAV4-... series rotary actuator and W8BV...series ball valve. Equal percentage flow characteristic guarantees the valve performances of stability.ApplicationControl ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.Technical data:Valve bodyMedium: cold/hot water, with 50% glycol                                      Temperature of medium: 2...90 CentigradeRated pressure: PN20                                                                  Pipe connector: internal thread                              Ambient temp. range: -5...+60 Centigrade ;0...90%RH                Valve type: 2-way Material Valve body: forged brass, Hpb59-1                                              Seal: ball: EPDM+PTFEBall: stainless steel brass                                                             Stem: EPDM      Valve connector: PC                                                                     Valve spindle: aluminum alloy            Model No.         Type          Dia.        Inch       Kvs(m3/h)     Pmax(KPa) Ps(KPa)          W8BV232        2-way        32mm       11/4"            16          1000         1400ActuatorWVA4-1…   230 VAC±15%, 3-pointBrown wire is power on                                                            counterclockwise rotation, valve openRed wire is power on                                                                clockwise rotation, valve closeBrown or red wire is power off                                                  Valve keep the current position        Model No.     Working Voltage        Actuator type    Output torque       On/off time   Valve body    WVA4-106     220VAC±15%            3-point           6N.m        6VA   W8BV232   W8BV240   W8BV250/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
