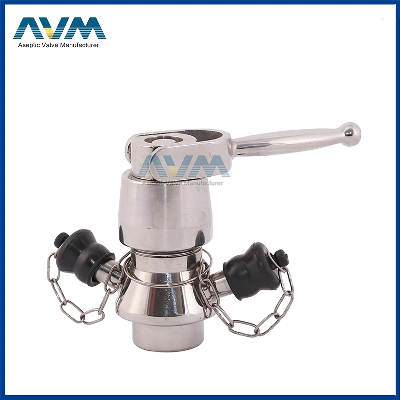

Stainless Steel Sanitary Aseptic Sampling Valve

Stainless Steel SS316L Aseptic Sanitary Sampling Cock Sample ValveFeature:1. 304 stainless steel,316L stainless steel 2. Silicone O-ring plus plunger to assure a leak proof connection 3. Surface finish polish to sanitary standards 4. Recommended usage in wineries 5. End connections available: clamp and NPT 6. Sizes available: 1" clamp and 3/8" NPT Technical specificationMaterial of Product Wetted 316L (DIN-1.4404)Material of Non-product Wetted 304 (DIN-1.4301) Seal materialPTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2)All seal materials comply with FDA 177.2600. Continuous working temperature -20C +135C (EPDM) Sterilization temperature 150oC (Max 20min) Working pressure 0~10barInternal surface Ra0.8μmExternal surface Shot blasting SizeDN6/M4,DN8/M4,DN15/W9ApplicationIts mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment. Aseptic sampling valve has two configurations. 1. Sanitary sampling valve adopts PTFE/EPDM seals and is operated by metal hand wheel. It is cost-effective and easy to operate. 2. Sanitary sampling valve adopts hard-metal seals and can be used for abrasive product sampling. It is operated by plastic hand wheel, and both angle and straight type structures are available .  Sanitary valveSanitary Butterfly ValvesSanitary Check ValvesSanitary Ball ValvessSanitary Reversal ValveSanitary Diaphragm ValvesSanitary Sample ValvesSanitary Safety ValvesSanitary Control ValvesSanitary Relief Pressure ValvesSanitary Pipe FittingsSanitary ElbowSanitary TeeSanitary ReducerSanitary CrossSanitary Triclamp FerruleSanitary CapSanitary Pipe HangerSanitary Tank Cleaning BallSanitary Hose JointSanitary UnionsSanitary Sight GlassSanitary StrainerSanitary ManwaysSanitary Round Manway without PressureSanitary Round Manway with PressureSanitary Square ManwaySanitary Oval ManwaySanitary PumpsSanitary Centrifugal PumpSanitary Lobe PumpSanitary Self Priming PumpSanitary TanksStorage TankFermentation TankMixing TankWarm-keeping TankSanitary TubeSeamless TubeWeldless TubeSanitary GasketSilicone/EPDM Gasket for TriclampSilicone/EPDM Gasket for UnionSilicone/EPDM Gasket for Manhole CoverSilicone/EPDM Gasket for Butterfly ValveOur FactoryOur OfficeThe PackagingThe ExhibitionsPlease contact now   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
