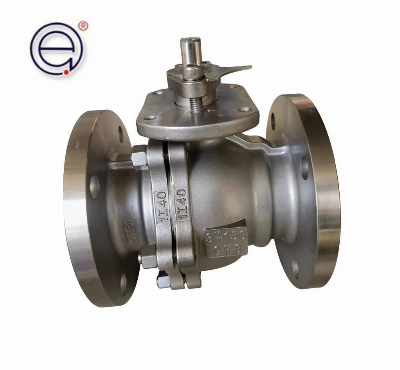

Q41F-150LBP Carbon Steel/Cast Iron Ball Valve

https://owlice.en.made-in-china.comFloating ball valveBall valve ball is floating, under the action of medium pressure, the ball can produce a certain displacement and tight pressure on the sealing surface of the outlet end, to ensure that the outlet end sealed. Floating ball valve has simple structure and good sealing, but the ball bears the load of the working medium all to the outlet sealing ring, so it is necessary to consider whether the sealing ring material can withstand the working load of the ball medium. This structure is widely used in low and medium pressure ball valves.Parameter level1. Nominal pressure or pressure level: PN1.0-32.0MPa, ANSI CLASS 150-900, JIS10-20K;2. Nominal diameter or caliber: DN6 ~ 900, NPS 1/4 ~ 36;3. Connection mode: flange, butt welding, thread, socket welding, etc.;4. Applicable temperature: -196ºC ~ 540ºC;5. Driving mode: manual, worm gear and worm drive, pneumatic, electric, hydraulic, gas-liquid linkage, electro-hydraulic linkage;6. Valve body material: WCB, ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, CF8(304), CF3(304L), CF8M(316), CF3M (316L), Ti. Choose different materials, can be applied to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media.Q41F-150 LB, Q41F-300 LB, Q41F-600 LBsizeinch1/2"3/4"1"1-1/2"2"2-1/2"3"4"5"6"8"10"DN15202540506580100125150200250Lmm140152165190216241283305381403502568Hmm59637597107142152178252272342345Wmm1301301602302304004007001100110015001500weightkg2.53.55.510.514.523.530.055.081.0118.0200.0250.0American standard ball valve 150 Lb external dimensions and connection dimensionsinside nominal diameter NPSunitLDTGCn-φdWHinmm1/2"15mm10889123560.54-1511572in4.253.50.471.382.384-0.594.5328.33/4"20mm117981243704-1511576in4.613.860.471.692.764-0.594.5329.91"25mm127108125179.54-1515092in54.250.4723.134-0.595.93.6211/2"40mm16512714.37398.54-16200123in6.550.562.883.884-0.627.874.842"50mm17815215.992120.54-19200132in76.000.6253.624.754-0.757.875.2021/2"65mm19017817.5105139.54-19320164in7.570.694.125.5.4-0.7512.66.453"80mm20319019.1127152.44-19320173in87.500.75564-0.7512.66.84"100mm22922923.9157190.58-19450210in990.946.197.58-0.7517.728.266"150mm39427926216241.58-228000288in15.510.981.028.59.508-0.8831.51.348"200mm45734329270298.58-221120374in18.0013.501.1210.6211.758-0.8844.1014.7210"250mm5334063132436212-251420366in20.98161.212.7514.7512-155.1214.4012"300mm6104833238143212-251420412in24191.26151712-155.1216.22300 Lb profile dimensions and connection dimensionsinside nominal diameter NPSunitLDTGCn-φdWHinmm1/2"15mm14095153566.54-1511572in5.513.740.591.382.624-0.594.5328.33/4"20mm152117164382.54-1911576in5.984.610.621.693.254-0.754.5329.91"25mm1651241851894-1915092in6.54.90.7123.54-0.755.93.6211/2"40mm19015620.773114.54-22200123in7.56.120.812.884.514-0.887.874.842"50mm21616522.3921278-19200132in8.56.50.883.6258-0.757.875.2021/2"65mm24119025.41051498-22320164in9.57.514.125.878-0.8812.66.453"80mm28321028.5127168.58-22320173in11.258.25101256.628-0.8812.66.84"100mm30525431.81572008-22450210in12101.256.197.888-0.8817.728.266"150mm40331836.621627012-221120336in15.87512.51.448.510.6212-0.8844.1013.238"200mm5023814227033012-251420385in19.761516.510.6212.9912-155.1215.1610"250mm56844448324387.516-291420370in22.3617.501.8912.7515.2516-1.1255.1214.56Frequently asked questions:1. Yes, sample orders can be used for quality inspection and market testing. But it is not free.2. Production usually takes about 25-30 working days. For large orders, it depends on the number of orders.3. In order to recommend the right product to you, please provide details, such as size, material, pressure, model.4. Payment is mainly T/T. Payment period: 30% advance payment, 70% balance is paid before shipment or based on a copy of the bill of lading.5. The warranty period is 12 months after leaving the factory. Due to quality problems, we can repair or replace it.6. According to your requirements, we have standard models in stock. Some special products and large orders will be newly produced according to your order.7. Yes, different models can be mixed in one container.8. Quality first, we always attach importance to quality control from the beginning to the end of production. Before painting, packaging and transportation, each product will be fully assembled and carefully tested.9. Yes, we have the right to export and sell products around the world.10. Our company has passed API 6D, CE 0036 and ISO9001.TestAfter all the goods are completed, the port will be provided.For more information on our website: https://owlice.en.made-in-china.com/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
