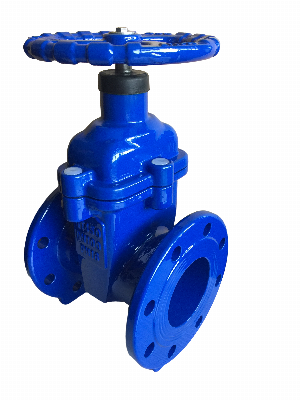

Water Cast Ductile Iron Flanged F4 Resilient Seat Gate Valves

Product DescriptionProduct IntroductionNon Rising Resilient Seat Gate Valve is used for the various water supply and drainage pipeline in building, chemical, medicine,textile,ship and other  industries. The gate valve is an opening and closing gate. The movement direction of the gate is perpendicular to the direction of the fluid. It can only be fully opened and fully closed, and cannot be adjusted or throttled. The gate valve is sealed by the contact between the valve seat and the gate plate, and usually the sealing surface is welded with metal material to increase the wear resistance.Product Features1. Such a design as the dustproof ring plus three layers of o-seal ring makes the sealing reliable and on-line replaceable.2. The design with an aluminum bronze bearing inlaid in the gate leaves a good self-lubrication and a high strength.The said bearing can be replaced without need to replace the integral gate when worn out after a long time use.3. The gate is wrapped with rubber,anti-corrosion and good at tightness.4. Advanced surface treatment,coated with harmless epoxy resin static powder , anti-corrosion,non-pollution,can be used in a drinking pipeline.5. The body is gate-slot free designed,the channel is smooth without causing impurities to be piled up,more suitable for sewage working condition.Product Parameters Certifications Packaging & Shipping Company ProfileOverseas Exhibition     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
