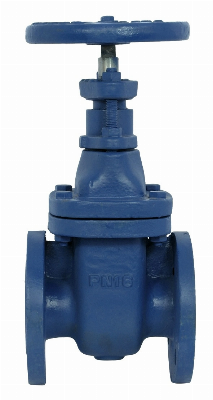

Pn25 Cast Iron Gate Valve Non Rising Stem

PN25 Cast Iron Gate Valve Non rising stem  Product DescriptionThe gate valve is a gate with opening and closing parts.The movement direction of the gate is perpendicular to that of the fluid.Gate valves can only be fully opened and closed.They are mainly used as cutting off media in pipelines and not as regulating flow rate.It can be used in low temperature and low pressure, high temperature and high pressure, and can be used in different media according to the different material of the valve. SpecificationBody: Ductile Iron Spray Epoxy ResinDisc: Ductile Iron Coated Nitrile Butadiene RubberShaft: Stainless Steel/SS420Seat: Nitrile Butadiene RubberCover: Ductile Iron Spray Epoxy ResinSize: 2"-24" /DN50-DN600Working Pressure: PN10/PN16,ANSI CLASS125Thread End Standard: GB/T7306.1,GB/T7306.2,ASME B1.20.1(NPT),EN10226.1,EN10226.2,BSP PARALLELWorking Temperature: -15ºC- 80ºC  NPS22 1/23456810121416182024DN506580100125150200250300350400450500600L(mm)GB/T122211.0MPa1781902032292542672923303563814064324575081.6MPa1781902032292542672923303563814064324575082.5MPa178190203229254267292330356381406432457508  Advantages1. Fluid resistance is small.2. Opening and closing require less external force.3. The flow direction of the medium is unrestricted.4. When fully open, the sealing surface is less eroded by the working medium than the globe valve.5. Shape is relatively simple and its casting technology is good.Packaging & Shipping    Company ProfileShanghai Flow Valve &Fitting Co, Ltd. was founded in 1998, mainly in foreign trade export business, has invested in two professional manufacturing factories in Shanghai Jiading Waigang Industrial Zoneand Tianjin Wuqing Jingbin Industrial Park.These two subordinate factories are responsible for the professional production of ANSl, DINBS, GB and other standards of ball valve, butterfly valve, gate valve, stop valve, balance valve, filter, plug valve, control valve and other series of products.Nearly 80% of the company's products are exported to Europe,America, the Middle East, Southeast Asia and other parts of the world and we also conduct technical cooperation and OEM production with many European and American companies.Shanghai Flow Valve & Fitting Co., Ltd. began to actively participate in major domestic engineering projects in 2003.lt has established five sales centers in Shanghai, Beijing, Guangzhou, Xi'an and Chongqing, and its business covers northeast China, North China, northwest China,Southwest China, Central China, South China and other regions.The sales network and after-sales network basically cover most regions of mainland China.  Certifications Exhibition   FAQQ1: Can I have a sample order for valve?A1:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2:Do you have any MOQ limit for valve order?A2: Low MOQ, 1pc for sample checking is available. Q3: How do you ship the goods and how long does it take to arrive?A3: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional. Q4:How to proceed an order for valve?A4: Firstly let us know your requirements or application.      Secondly We quote according to your requirements or our suggestions.      Thirdly customer confirms the samples and places deposit for formal order.      Fourthly We arrange the production. Q5:Do you offer guarantee for the products?A5: Yes, we offer 1 year warranty to our products.Q6: Why choose us? A6: We are a manufacturer, we have been manufacturing for over 20 years.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
