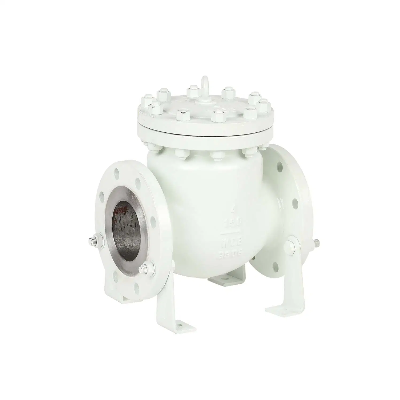

CF8M 150LB 3INCH SWING CHECK VALVE Specification:Size: 2"~30"Model:H44H/H44WPressure: 150Lb~900Lb or PN16-PN160 or 10K-40KMaterial: WCB, LCB, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M.EtcStandard:Design and Maufacture: BS1868, ANSI B16.34,GB/T12236,DIN3352Face to Face Dimension: ANSI B16.10End Flange Dimension: ANSI B16.5,GB/T12221,DIN3202Pressure Test: API 598,JB/T79,DIN2543-2550 Nominal Pressure150LB(2.0Mpa)300LB(5.0Mpa)600LB(10.0Mpa)900LB(15.0Mpa)1500LB(25.0Mpa)Test MediumShell Test3.0Mpa7.8Mpa15.0Mpa22.5Mpa37.5MpaWaterSeal Test2.2Mpa5.6Mpa11.0Mpa16.5Mpa27.5MpaAir Seal Test80lb(0.6Mpa)80lb(0.6Mpa)80lb(0.6Mpa)80lb(0.6Mpa)80lb(0.6Mpa)AirProducts:Zhejiang Jieyu Valve Co., Ltd. is a manufacturer of gate valves, globe valves, check valves, and ball valves with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in petroleum, chemical industry, metallurgy, electric power, pharmaceutical, paper, urban construction and other industries.Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!show of powerFAQ:1. Yes, sample order is available for quality check and market test. But it is not free.2. It usually takes about 25-30 working days to produce. For big order, it depends on the order quantity.3. We usually accept T/T, L/C, Western Union, Cash.4. We offer 12months warranty time.5. Depends on your request, we have standard models in stock. Some special products and big order will be newly produced according to your order.6. Yes, different models can be mixed up in one container.7. Quality is priority, we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before painting, packing and shipping.8. Yes, we have the right to export and can sell product all over the world.9. Our company has been audited and approved API 6D, CE 0036, ISO9001. Test report will be provided when all goods finished. Also we are the alibaba's gold supplier since 2010. Now we clients all around the world.Main products: GATE VAVLE, GLOBE VALVE, CHECK VALVE ,BALL VALVE, STRAINER /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
