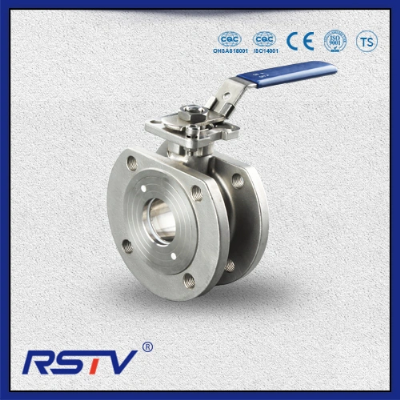

1PC Flanged Stainless Wafer Ball Valve with ISO5211 (PN16/40)

1PC Stainless Steel Wafer Type Ball Valve with ISO5211 Mounting Pad (Q41F)  Features and Benefits:  Blow-out Proof StemAnti-Static Device for Ball-Stem-BodyPressure Balance Hole in Ball Slot2 Belleville Washer to Self-adjust PackingISO 5211 Direct Mounting Pad for Easy AutomationLocking Device Spring Handle , New DesignFire-Safe Design AvailableDesign standard: ASME B16.34,API 608Wall Thickness standard: EN12516-1Flange End:ASME B16.5 CLASS 150/300, DIN 2653 PN10-PN40, JIS B2238 10K/20KInspection & Testing:API 598,EN 12266Operating / Test Conditions:Temperature Range:-20ºC to 190ºCWorking Pressure: 10K/150LB~300LB/PN16~PN40Working Medium: Water, Oil, Gas, Acid, etcFlange End:ASME B16.5 ,CLASS 150/300,DIN PN10-40,JIS B2220 10K/20KDesign: ANSI/ASME B16.34Inspection&Testing: API 598,BS EN 12266Options:Body Material:ASTM A351-CF8M,CF8, CF3,CF3M, ASTM A216-WCB,A105, etc.Locking Device Spring Handle AvailableFire-Safe Design AvailableProduct Name1PC Wafer Flanged Stainless Ball Valve(PN16/40)1. MaterialStainless Steel 304/316/304L/316L ( CF8/CF8M/CF3/CF3M)2. Size1/2''~4'' ( DN15~DN100)3.CertificateISO9001 & CE4. PortFull Port5. Flange standardDIN26336. Working PressurePN16~PN407. Connection EndsWafer type8. Working Temp.-20~300ºC9. Suitable MediumWater, Natural Gas, Oil and some corrosive liquid10. SealPTFE, RPTFE, PPL11. LockingOption12. Inspection & TestingAccording to API598Shipment Delivery Time15~20 DaysPackageStandard Exporting Plywood CaseShipping PortNingbo/Shanghai, ChinaShipping TermsExw, FOB, CFR, CIF, etc.Payment TermsT/T, Western Union, PayPal, etc. 30% prepayment, 70% balance paid before shipping or against copy of BLWarranty18 Months after leaving factoryAdvantageOEM/ODM is applicableOthersWe also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y StrainerMaterial List:  ItemPart NameMaterial List1BodyCF8MCF8WCB2Thrust WasherPTFE3O RingVITONFKM 4V-Ring PackingPTFE5GlandSUS3046Belleville WasherSUS3017Stop NutA194-88Stop CapSUS3019WasherSUS30410HandleSUS30411Stem NutA194-812Locking DeviceSUS30113Plastic PinPlastic14Handle coverPlastic15StemSUS316SUS304 16Anti-static DeviceSUS316SUS304 17Ball seatPTFERPTFE 18BallCF8MCF8 19Body gasketPTFE20CapCF8MCF8WCB21Position BoltSUS304Competitive Advantage:  18 Months Guarantee for quality.OEM manufacturer, print client's LOGO on the valve body.Timely delivery. 15 days for standard products. 30 days for non-standard products to make new mould.100% leakage test after assembly.As a factory, every production process can be controlled during manufacture.Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.Other Products We Manufacture               1.Industry Valves            Ball Valve            3 Way Ball Valve            1 PC Male/Female Thread Ball Valve            2 PC Male/Female Thread Ball Valve            3 PC Male/Female Thread Ball Valve            1 PC Flange/Welding/Union Ball Valve            2 PC Flange/Welding/Union Ball Valve            3 PC Flange/Welding/Union Ball Valve            Globe Valve            Male/Female Thread Globe Valve            Flange Globe Valve            Gate Valve            Male/Female Thread Gate Valve            Flange Gate Valve            Check Valve            Wafer Check Valve            Spring Check Valve            Dual Disc/Plat Wafer Check Valve            Swing Check Valve            Flange Check Valve            Butterfly Valve            Angle Seat Valve            Pneumatic Ball Valve            Pneumatic Angle Seat Valve            Electric Ball Valve            Electric Angle Seat Valve            Y Strainer/Filter         2.Industry Pipe Fittings            welded/thread Elbow            Tee            Cross            Cap            Pipe Hanger            Hose Joint            Unions            Quick connector            Quick coupling            Ferrule            Reducer            Socket            Bend            Plug            Bushing            Nipple            Y-Tee            Y-Shaped            Lateral-Tee            Flange          3 .Sanitary valve            Sanitary Butterfly Valves            Sanitary Check Valves            Sanitary Ball Valvess            Sanitary Reversal Valve            Sanitary Diaphragm Valves            Sanitary Sample Valves            Sanitary Safety Valves            Sanitary Control Valves            Sanitary Relief Pressure Valves        4. Sanitary Pipe Fittings            Sanitary Elbow            Sanitary TeeSanitary Reducer            Sanitary Cross            Sanitary Triclamp Ferrule            Sanitary Cap            Sanitary Pipe Hanger            Sanitary Tank Cleaning Ball            Sanitary Hose Joint            Sanitary Unions            Sanitary Sight Glass            Sanitary Strainer  Miya Young Sales Manager   ZHEJIANG RST VALVE TECHNOLOGY CO.,LTD Add: No.917, Tianzhong Rd, Yongiang Hi-Tech Park, Wen
