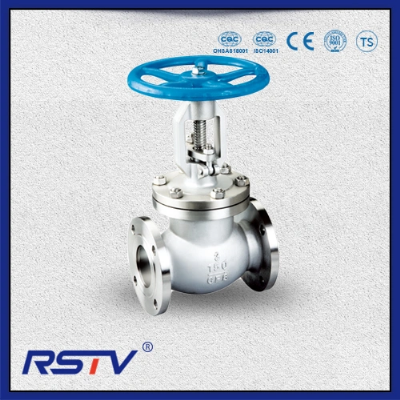

Flanged Cast Steel API Globe Valve WCB/CF8/CF8M150LB~900LB (OEM Manufacture )Globe Valve ApplicationGlobe valves are primarily used as control valves where throttling or both throttling and shut-off are required. Globe Valves can also be used for on-off service; however, because of design, a pressure drop becomes inherent. This is generally confined to on-off applications where the valve is normally closed and pressure drop is not important when the valve is open. Globe valves are uni-directional valves and normal applications will find the globe valve with the flow and pressure under the disc. GLT cast steel globe valves are commonly made in outside screw and yoke designs with full ports and heavy-duty type discs. Manufacturing Standards: General DesignAPI600/BS1873(cast steel valves)API602 (forged steel valves)Pressure RatingASME /ANSI B16.34Face to faceASME/ANSI B16.10Flange DimensionsASME/ANSI B16.5Butt-weld endASME/ANSI B16.25Inspection and TestAPI 6D/API598 Product Features:Stem nut uses aluminum bronze material. Large valve is provided with thrust bearing to make it opened easily & flexibly.Bolted bonnet, lift stem design.Two piece design of packing gland to avoid stem clogging caused by squishing.Flexible graphite packing for dependable sealing performance.Upper seal design to ensure dependable packing and sealing when valve is fully opened(Replacement of packing under pressure is not recommended).Operation: Hand wheel, Worm wheel, Pneumatic actuator and Electric actuator. Specifications: Product NameCast Steel API Flanges WCB 150LB Gate Valve1. MaterialA351 CF8M/CF8/CF3/CF3M,A216 WCB,A352 LCB,A217 WC6/WC92. Size1 1/2''~36'' ( DN40~DN900)3.CertificateISO9001 & CE4. PortFull Port5. Working Pressure150LB~900LB6. Connection EndsFlanged7. Working Temp.-196~450ºC8. Suitable MediumWater, Natural Gas, Oil and some corrosive liquid9. SealMetal10. LockingOption11. Inspection & TestingAccording to API598Shipment Delivery Time15~20 DaysPackageStandard Exporting Plywood CaseShipping PortNingbo/Shanghai, ChinaShipping TermsExw, FOB, CFR, CIF, etc.Payment TermsT/T, Western Union, PayPal, etc. 30% prepayment, 70% balance paid before shipping or against copy of BLWarranty18 Months after leaving factoryAdvantageOEM/ODM is applicableOthersWe also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer Material List: PartWCB Series304 Series316 SeriesCr-Mo(V) SeriesLCB, LCC SeriesBody & BonnetA216 WCBA351 CF8A351 CF3A351 CF8MA351 CF3MA217 WC5A217 C9A217 C5A352 LCBA352 LCCDiscA216 WCBA351 CF8A351 CF3A351 CF8MA351 CF3MA217 WC5A217 C9A217 C5A352 LCBA352 LCCStemA182 F6aA182 F304A182 F304LA182 F316A182 F316LA182 F6aA182 F6aSeat RingA105/A182 F6aA182 F304A182 F304LA182 F316A182 F316LA182 F6aA182 F6aSealing MaterialCr13/Cr13304/304HF/304HF/HF316/316HF/316HF/Monel304/304HF/304316/316HF/316HF/Cr13HF/HF316/316HF/MonelHF/316BackseatA182 F6aA182 F304A182 F304LA182 F316A182 316LA182 F6aA182 F6aYoke SleeveA439 D2A439 D2A439 D2A439 D2A439 D2StudA193 B7A320 B8A193 B8A193 B7A193 B7ButA194 2HA194 8A193 8MA194 2HA194 2HPackingGraphiteGasketSpiral Wound+Graphite/Ring Joint MetalHandwheelCarbon Steel/Ductile Cast IronOther Products We Manufacture 1.Industry Valves Ball Valve 3 Way Ball Valve 1 PC Male/Female Thread Ball Valve 2 PC Male/Female Thread Ball Valve 3 PC Male/Female Thread Ball Valve 1 PC Flange/Welding/Union Ball Valve 2 PC Flange/Welding/Union Ball Valve 3 PC Flange/Welding/Union Ball Valve Globe Valve Male/Female Thread Globe Valve Flange Globe Valve Gate Valve Male/Female Thread Gate Valve Flange Gate Valve Check Valve Wafer Check Valve Spring Check Valve Dual Disc/Plat Wafer Check Valve Swing Check Valve Flange Check Valve Butterfly Valve Angle Seat Valve Pneumatic Ball Valve Pneumatic Angle Seat Valve Electric Ball Valve Electric Angle Seat Valve Y Strainer/Filter 2.Industry Pipe Fittings welded/thread Elbow Tee Cross Cap Pipe Hanger Hose Joint Unions Quick connector Quick coupling Ferrule Reducer Socket Bend Plug Bushing Nipple Y-Tee Y-Shaped Lateral-Tee Flange 3 .Sanitary valve Sanitary Butterfly Valves Sanitary Check Valves Sanitary Ball Valvess Sanitary Reversal Valve Sanitary Diaphragm Valves Sanitary Sample Valves Sanitary Safety Valves Sanitary Control Valves Sanitary Relief Pressure Valves 4. Sanitary Pipe Fittings S
