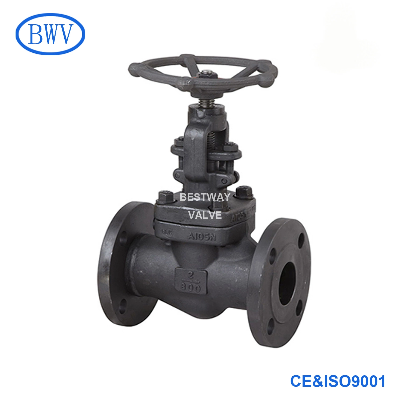

API602 150lb A105n Flanged Ends Forged Carbon Steel Globe Valve

API602 150LB A105N Flanged Ends Forged Carbon Steel Globe ValveA globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug,can be screwed in to close (or shut) the valve.The plug is also called a disc or disk.In globe valves,the plug is connected to a stem which is operated by screw action using a handwheel in manual valves.Typically,automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.Descriptions:   1) Design standard: API602 2) Flanged ends: according to ASME B16.5,     Face to Face: according to ASME B16.10. 3) Inspection standard: API598 4) Material: A105N, LF2, F304, F304L, F316L,F51,F11,ect.5) Working pressure: 150LB 6) Sizes:  1/2" ~ 2"  7) Metal to metal sealing 8) OS&Y Rising Stem Design 9) Bolted Bonnet and Welding Bonnet are available. 10) Hand Wheel Operation 11) Working temperature:-29~ 426 degree C   No.PartsMaterial1BodyA105N2Disc2Cr134Stem1Cr135Gasket304+Flexible Graphite6BonnetA105N7BoltsA193 B78PackingFlexible Graphite9PinA276 41010Gland NutA276 41011GlandA105N12NutA194 2H13Stem NutA276 41014WheelhandleA19715NameplateAL16NutA194 2HWORKSHOP CORNER  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
