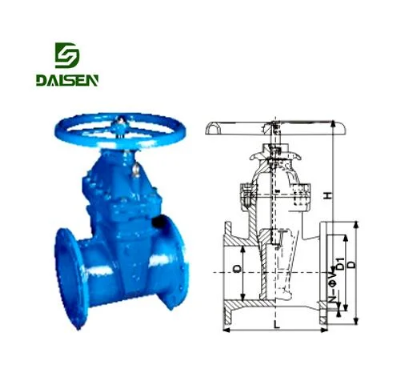

Ductile Iron Resilient Seated Sluice Valve Pn10/16 Gate Valves

Soft Seal Gate Valve Series The valve stem is designed with three "O" rings. It can reduce the friction resistance when switching, greatly reduce the leakage phenomenon and replace the The inside and outside of the valve body are coated with non-toxic resin, which meets the sanitary conditions, enhances the corrosion resistance and eliminates the secondary pollution to the water quality.The valve stem nut is embedded in the gate, so that it will not be loose, and is not easy to be corroded, so that the service life is long.The bottom of the valve is flat, not easy to accumulate debris, the fluid is unobstructed, and the switch is free.The ram surface is wrapped with EPDM. Reliable sealing, anti-wear and zero leakage rate.sealing ring Product Name: Resilient Seated Gate Valve                                   Item No.: Z45X-10/16QADetailsDN506580100125150200250300350400500600800(2")(2 1/2")(3")(4")(5")(6"0(8")(10")(12")(14")(16")(20")(24")(32")L178190203229254267292330356381406457508720H238253268324362423521626700862959115113192900d 506580100150200250300350400450500600800D        (16/10)16518520022028534040546052058064071584010253954455055656156707801015D1 (16/10)99118132156211266319370429480548609720950530582682950N-ΦV(16/10)4-Φ194-Φ198-Φ198-Φ198-Φ238-Φ2312-Φ2312-Φ2816-Φ2816-Φ3120-Φ3120-Φ3420-Φ3724-Φ408-Φ238-Φ2312-Φ2316-Φ2316-Φ2820-Φ2820-Φ2820-Φ3124-Φ34 Parts Name BodyDisc Stem Bonnet Hex.BoltsBonnet GasketBonnetWasherGland O-ringsWiper Ring Hand Wheel Material QT500 Ductile IronQT500+EPDM Ductile Iron +EPDM2Cr13 Stainless Steel 420S37Q235 Stainless SteelEPDMQT500 Ductile IronZQSn5-5-5 Gun metalQT500 Ductile IronEPDMEPDMQT500 Ductile IronMain Technical ParameterDesign Standard:CJ216-2005 BS5163Face to Face: BS5163/ISO5752 3 seriesFlange End: BS4504/ BS EN1092Dody: 2.4/1.5Usable Medium: Fresh Water,Air or other gas,Oil, t≤70ºCMore Iron Resilient Seated Gate Valve for option Production ProcessAbout Three Cast Irona.Malleable Cast Iron(MOS Iron/ Magang)  b.Ductile Cast Iron  c.Gray Cast Iron  Compared with Gray cast iron, Ductile iron in intensity has an absolute advantage. The tensile strength of ductile iron is 60k, while the tensile strength of Gray cast iron is only 31k.The yield strength of ductile iron is 40k,while Gray cast iron did non yield strength. The strenght and cost of ductile cast iron is much superior the Gray cast iron.Ductile cast iron and Grey Cast Iron in the corrosion resistance is in the same.     Ductile cast iron has the same strength of cast steel, but also has excellent corrosion resistance, and the cost of ductile cast iron is lower than cast steel. About Surface Treatment: Epoxy Resin CoatingOEM serviceHaving our own factory and professional technicians,we welcome OEM orders as well.We can design and produce the specific product you need according to your detail information. After-sale ServiceOur enthusiastic and friendly customer service representatives are ready to assist with any questions or problems.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
