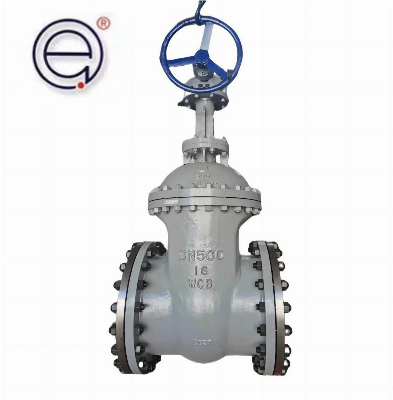

Carbon steel dark rod gate valve with bevel gear Z545H-16C

https://owlice.en.made-in-china.com1. Z545H umbrella gear dark stem brake valve introduction: Z45H low pressure dark bar cast steel gate valve, replace the traditional cast iron valve, compact structure, reasonable design, good rigid valve, smooth channel, small flow resistance coefficient. They are models Z545H-10C, Z545H-16C, and Z545H-25C. Its sealing surface of stainless steel and carbide, long service life. Using flexible graphite filler, reliable sealing, light and flexible operation.Z545H parachute gear is driven by manual, electric, pneumatic and gear drive; structure: elastic wedge single gate, rigid wedge single gate and double gate type. Suitable for petrochemical industry, metallurgy, water treatment, thermal power plant and other oil products, water steam pipeline for connecting or cutting off the pipeline medium opening and closing device.2. Z545H umbrella gear dark stem brake valve performance parameters:  modelnominal pressure MPatest pressure MPaworking temperatureworking mediumsealintensityZ545H-10/16/2511.11.5≤100-200ºCWater, steam, oilZ545W-10/16/25Z545T-10/163. Part material of Z545H gear:  modelValve body, bonnet, gate plategasket ringvalve stemfillingZ545H-10CGrey cast iron, cast steel, 304,316,316L stainless steelstainless steelCarbon steel, stainless steelOil-soaked asbestos plate rootZ545W-10P/R/RLZ545T-10Z545T-16CZ45W-16P/R/RLZ545H-25CZ545T-16Z545W-25P/R/RL4. Z545H gear brake valve size data:  borePN10PN16DN(mm)LDHD0LDHD0401651453001602403452001605018016030018025035524018065195180340180265375240180802101953602002804352802001002302154002003005003202001252552455002403256153602401502802805502403506753602402003303356203204007504003202503803907003204509704503203004204408004005001145560400350450500950400550--4004004805651050500600--5004505106151175500650--5005005406701410720700--7206006007801550720750--7207006608951800800---80080072010102170-----90078011102300-----100084012202600-----12009601450------Frequently asked questions:1. Yes, sample orders can be used for quality inspection and market testing. But it is not free.2. Production usually takes about 25-30 working days. For large orders, it depends on the number of orders.3. In order to recommend the right product to you, please provide details, such as size, material, pressure, model.4. Payment is mainly T/T. Payment period: 30% advance payment, 70% balance is paid before shipment or based on a copy of the bill of lading.5. The warranty period is 12 months after leaving the factory. Due to quality problems, we can repair or replace it.6. According to your requirements, we have standard models in stock. Some special products and large orders will be newly produced according to your order.7. Yes, different models can be mixed in one container.8. Quality first, we always attach importance to quality control from the beginning to the end of production. Before painting, packaging and transportation, each product will be fully assembled and carefully tested.9. Yes, we have the right to export and sell products around the world.10. Our company has passed API 6D, CE 0036 and ISO9001.TestAfter all the goods are completed, the port will be provided.For more information on our website: https://owlice.en.made-in-china.com/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
