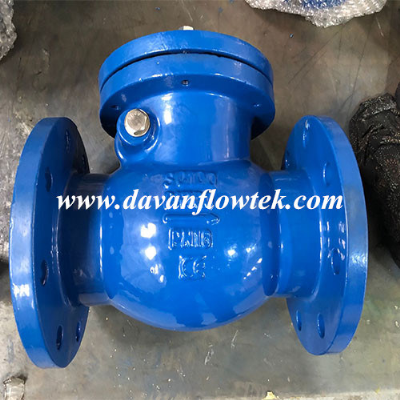

Flanged End Pn10 Ductile Iron Ggg50 Wcb Water Lift Swing Check Valve

China Factory Check Valve Ductile Cast Iron GGG50 DN150 DIN/BS Standard Flanged Water Blue Brass Seat PN16 Swing Check Valve WRAS Check Valve Technical Specification:Nominal Diameter: DN40-600Nominal Pressure: PN10-16Design Standard: BS5153/MSS SP-71FTF Dimension: DIN EN3202-F6/ASME B16.10Flange Connection: ASME B16.1 CL125/EN1092 PN10-16Inspection and Test: API598/ EN12266Swing Check Valve Material List1. Body: Cast Iron GG252. Disc: Cast Iron GG253. Seat Ring: Brass4. Disc Ring: Brass/EPDM5. Hanger: Ductile Iron GGG506. Hanger Pin: Stainless Steel 2Cr137. Gasket: Graphite+304/EPDM8. Stud and Nut: A194B8-8/B7-2HSome Ending Customer:MOQWe do not have any MOQ for this valve, 1 set order is also can be accepted.DeliveryIt depends on the order quantity, the common delivery time will be 15-20days after received payment. Small orderShipment by LCLBulk orderShipment by FCLUrgent or sample orderBy air cargo or courierPayment way30% deposit, the balance will be paid before loading.Hydraulic testingWe promise 100% hydraulic testing before exporting, with the testing machine.Body testing: 1.5* design pressureSealing testing 1.1* design pressureWe can provide a 12-month warranty after the shipping date.Packing wayPlywood case in exporting standard, bubble plastic packing insideOur website: davanflowtek.en.made-in-china.com/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
