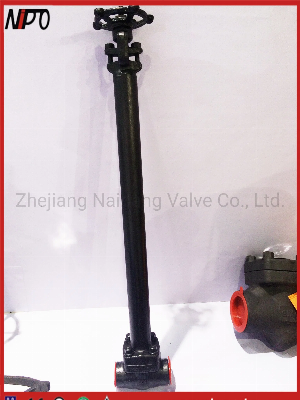

Forged Steel Extension Stem Thread Gate Valve

Forged Steel Extension Stem Thread Gate Valve1. Product descriptionForged steel gate valve is a rigid solid gate, the direction of the gate and the direction of the fluid vertical, can be fully open or fully closed, the body is the integral forging, very suitable for high temperature and high pressure working conditions. Gate valve fluid resistance is small, sealing surface by medium erosion and erosion is small, the standard valve opening and closing more effort, medium flow direction is not limited, no turbulence, no pressure reduction, simple form, short structure length, good manufacturing technology, wide range of application. 2. Forged steel gate valve main parameters:Standard:API, JB, GB, ANSIshape:mediumConnection form:lange connection flowdirection:bidirectionalApplicable medium:water, steam, oil, etcSpecification: dn10-dn50Stem screw position: rising stem gate valvepurpose: fluid switchDriving mode:manualmodel:Z41H/Z41W, etcMain material:carbon steel, stainless steel, aluminum alloy steel, etc.Pressure classes:150LB~2500LB (0.6-42.0mpa) Size: DN10 - DN50 Pressure class :150LB-2500LB (0.6-42.0mpa) Valve body material :A105, F11, LF2, F304, F316,F304L,F316L etc Applicable medium: water, steam, oil, etc Connection: flange, socket welding, NPT internal thread Operation mode: manual 3.Applicable Temperature range:(1), Carbon steel, available temperature range: -29ºC~+425ºC (2), Alloy steel, available temperature range: ≤550ºC (3), Stainless steel, available temperature range: -196ºC~+ 200ºC 4. Forged steel gate valve features:(1), Full size or reduced size design (2), Three bonnet types: bolted, welded, self-sealing (3), sealing surface is not easy to wear, abrasion, good sealing performance, long life. (4), compact structure, good opening and closing, small height, convenient maintenance.   (5), Inverted sealing of the body (6), Simple in shape, short face-to-face length, good technic in producing, and widely applied PRODUCTSWORKSHOPINSECTIONWe welcome all the world customers to contact us for more cooperation. With our years of technical knowledge and experience, we assure you, Naibang will be one of your best parters in China.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
