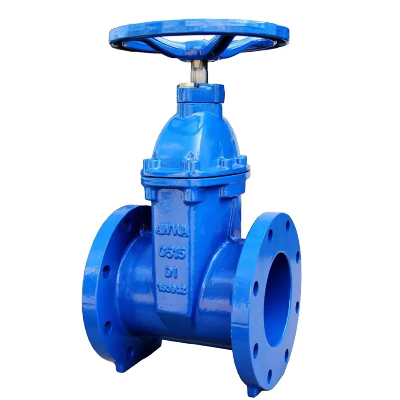

Pn10 Pn16 Flanged Gate Valve for Water Standard Ductile Iron

Pn10 Pn16 Flanged Gate Valve for Water Standard Ductile IronDetails as below:Item: ANSI-125/150 Cast iron gate valve(rising stem)Standard: ANSIBody: Cast iron or Ductile ironSeatring: Cast iron/Cast bronze/stainless steelDisc: Cast iron or Ductile ironStem: Stainless steelBonnet: Cast iron or Ductile ironPacking: Not asbestosGlad: Ductile ironHandwheel: Cast iron or Ductile ironSize: DN40~DN600Nominal pressure: 125PSI, 150PSIAplication:1. Face to face is according to ANSI B16.102. Flange drilled is according to ANSI B16.OEM is welcomed!Any questions or more details, please feel free to contact me!DN40506580100125150200250300350400500INCH1.5"2"2.5"3"4"5"6"8"10"12"14"16"20"L140150170180190200210230250270290310350H2552472762933344484485496177248308901000D(PN10)150165185200220250285340395445505565570D(PN16)150165185200220250285340405460520580715Machining ProcessOther productsAbout us:Our factory is specialized in valves' production. As one of the biggest and most professional manufacturer and exporter majored in valves, we assure that we can provide our products with cheapest price, good quality and best service. If you like, welcome to our factory and have a look!Why Choose USWe control the material of PTFE and stainless steel wires per customer's request.Some are from Japan and Taiwan, some are from China local. Only choose high quality material.We test leakage of each roll before braiding, then we cut 300mm and crimp it to testburst pressure after brading.We use CNC Lathes Machine for end fittings production. Machine system, knife and inspectiontools are all imported from Japan.We use Techmaflex Crimping Machine which is imported from France. This machine hasaccurate and stable performance for crimping because it is produced for PTFE hose crimping only.     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
