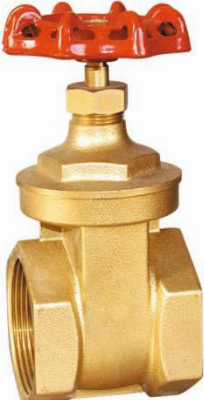

Brass Female Threaded Gate Valve-Z15

Brass Female Threaded Gate Valve-Z15Product Description     Product DescriptionForged gate valve is a rigid solid gate, the direction of the gate and the direction of the fluid vertical, can be fully open or fully closed, the body is the integral forging, very suitable for high temperature and high pressure working conditions. Gate valve fluid resistance is small, sealing surface by medium erosion and erosion is small, the standard valve ope ing and closing more effort, medium flow direction is not limited, no turbulence, no pressure reduction, simple form, short structure length, good manufacturing technology, wide range of application. Forged steel gate valve main parameters:Size: DN15 - DN100Pressure class :PN5-PN15Valve body material :A105, F11, LF2, F304, F316, F316L,F5A,F6AetcApplicable medium: water, steam, oil, etcConnection: flange, socket welding, NPT internal threadOperation mode: manualStandard:Design: API 602 & ANSI B16.34Face to Face: ANSI B16.10Test and Inspect: API 598End Flanged: ANSI B16.5BW End: ANSI B16.25NPT End: ANSI B1.20.1SW End: ANSI B16.11PRODUCTSWORKSHOPINSPECTIONPACKINGWe welcome all the world customers to contact us for more cooperation.With our years of technical knowledge and experience, we assure you,Naibang will be one of your best parters in China./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
