Cast Iron Water Lug Flange Knife Gate Valve Pn10/Pn16 Top Quality

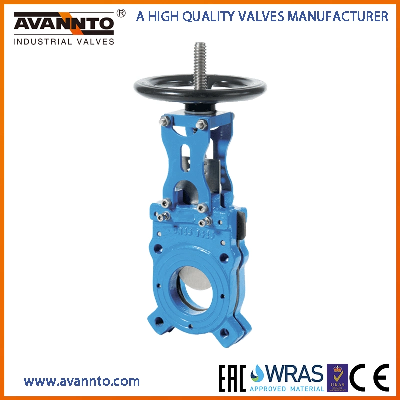

AVANNTO AOKV01 Knife Gate valves are all bi-directional and can therefore be installed into pipe systems independent of pressure direction. Full bore and excellent flow characteristics makes them suitable for fluids, sludge and liquids with solids in suspensions such as water, sewage and bio mass.Highlight:·Suits for handling viscous liquids, and liquids with solid parts in suspension·The seals are available in different materials, for use with the various fluids/service media·Self-cleaning·Direct mount actuators including Hand lever, Gearboxes, Chain driver, Pneumatic and Electric actuators·Available in both wafer and lug typeSpecifications:Body Materials: Cast Iron, Ductile Iron, Stainless SteelDisk Materials: Stainless SteelStem Materials: Stainless SteelSeat Materials: BUNA-N(NBR& Nitrile), EPDM, FKM, PTFE,Applications:  Water&Wastewater, Chemical Process, Pulp & Paper, Food & BeverageMaterial availability depends on valve size & series. Other materials are available. Please consult to us or your local AVANNTO representative for your specific condition.Nominal diameter:DN 50 - DN 600Face-to-face:EN 558-1 Series 20ISO 5752 Series 20Flange accommodation:EN 1092 PN10ASME/ANSI B 16.5 Class 150Tightness check:EN 12266 (Leakage rate A)ISO 5208, Class ATemperature range:-10 °C to + 180°C (depending on pressure, medium and material)Max. Operating pressure:max. 10 bar  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
