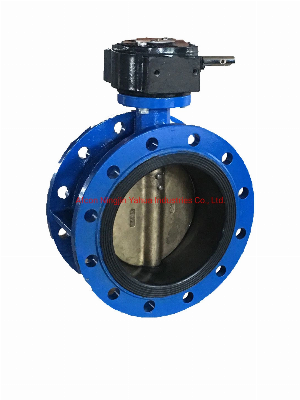

Double Flange Butterfly Valve with Vulcanized Seat for Marine

Double Flange Butterfly Valve with Vulcanized Seat for Marine Certificate: LR,ABS, DNV  Materials: Body:Ductile iron, cast iron, stainless steel and WCB Disc:Stainless steel, Al-bronze and ductile iron Shaft:Stainless steel (spline shaft without pins) Seat:EPDM, NBR, Viton and PTFE General design:API 609 Face-to-face:API 609 and EN 558 1 to 20 series Flange drilling:ANSI class 125/150, class 300 and DIN PN10/16/25/40 JIS10K/16K Actuating form:Hand lever, worm gear, electric actuator and pneumatic actuator Size:DN25 to 1200 Size: DN40-DN1200Design Standard: DIN API JISEnd flange: DIN 2501 PN10 / PN16 ; ASME B16.1 / B16.2 / B16.5; CLASS 125 /150Face to face: ISO5752Body:Ductile iron, Stainless Steel, Cast Steel, Cast IronDisc:Ductile iron, Stainless Steel, Aluminum BronzeStem:Stainless steelSeat:NBR, EPDM, VITON, PTFESuitale medium: Sewage, Sea water, Air, Foodstuff and Oil Packing:Plywood Wooden Cases.Production Capacity: 20000 Set/MonthTrademark:AfconPayment :T/T or LCInspection:100% testing before delivery  Dear Prospective Customer, AFCON adheres to the following Core Values:O Personal and Professional Working RelationshipsO Complete Trust and Respect for each person on Our TeamO "Quality IS our Business" With over 10 years of growth development and experience with our successful product research, manufacturing expertise and sales performance we have proven that "Quality IS our Business".  Quality sets the guidelines and targets that we need to meet our Customers demands therefore ensuring we continually endeavor to strive for improvement with our  Research and Development, products and standards so they always meet with and satisfy the ever increasing needs and demands of our customers.  We also have a specific focus to develop products that enhance 'Safety' and the workplace. We plan to release some innovative valves, especially in fire safe industries with API approval for this in the very near future." Our TEAM look forward to meeting you in the near future .Sales Tem of AFCON/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
