Landing Factory Prices Fire Fighting System Underground Fire Hydrant Valves

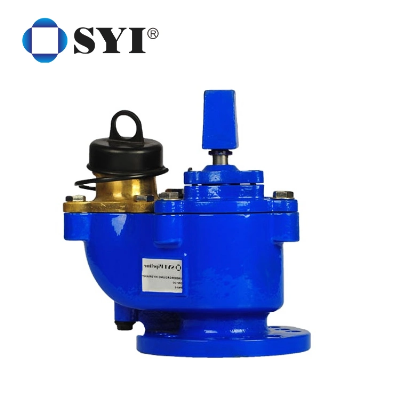

SYI BS750 Underground Fire HydrantDescriptionUnderground fire hydrant is an outdoor underground fire water supply facility. It is used to supply water to fire truck or directly connect with hose and water gun for fire fighting. It is a necessary special facility for outdoor fire fighting water supply. Installed underground, does not affect the city appearance, traffic.   By the valve body, elbow, seat, disc, drain valve, stem and interface components. Underground firehydrant is an indispensable water supply device for fire fighting in cities, factories, mines, power stations, warehouses, docks,residential buildings and public places.Especially in urban areas and areas with few rivers. The structure of the product is reasonable, reliable performance, easy to use. When underground fire hydrants are used, there should be obvious signs. Underground hydrants are common in cold areas.Techinical Specifications:Flange drilling: BS4504:2000Working Pressure: MAX PN16Outlet Material is upon your request, and following materials are available Aluminum, Brass, Bronze.Main Parts and Material: Item Part Name Material 1 Body ASTM A216 WCB ASTM A351 CF8 2 Wedge disc WCB CF8 CF8M MONEL   3 Stem F6A F304 F316 MONEL F304 4 Wedge disc sealing face 13Cr13CrSTL 304 STL 316 STL MONEL 304 304 STL 5 Seat ring sealing face 13CrSTLSTL 304 STL 316 STL MONEL 304 STL STL Item Part Name Material 1 Body Grey Iron/Ductile Iron 2 Bonnet Grey Iron/Ductile Iron 3 Stem Brass or Stainless Steel 4 Disc "Cast Brass/Ductile Iron + VULCANIZED NBR/HR" 5 Cap Grey Iron/ Ductile Iron Main Dimensions:DNDH80200278For other sizes not mentioned above, please contact us.We have right to change the data without further notice.Quality ControlSYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier to many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!Production ProcessPacking&DeliveryPacking: Usually packed by plywood crates or pallets.Company/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
