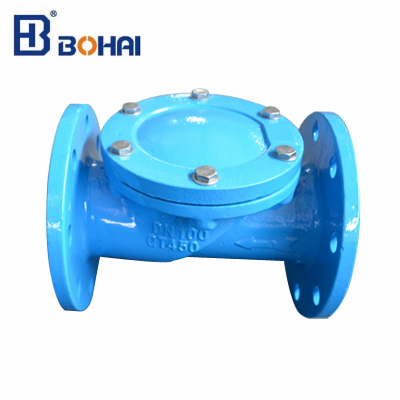

Water Valve Flange 3′′ Industrial Control Check Valve

Water valve Flange 3''  Industrial  control check ValveI .Features1, valve disc and body shape design,Improve the flow direction of medium and reduce the flow resistance coefficient2, the structure of the valve using short forms, although the head loss than lift mute check older, but small volume, price cheap3, compact structure, orientation between shaft and guide frame is equipped with nonmetal lubrication, flexible disc lift, won't produce lock phenomenon,4,skeleton rubber sealing ring inlaid on the valve body directly, to avoid the medium directly scour of sealing ring, long time use5, the valve disc opening and closing stroke is short, can effectively prevent the water hammer6. Suitable for water supply and drainage system, high-rise building pipe network, can be installed at the outlet of the pump, the structure is slightly changed, can be used as suction bottom valve, but not for sewage pipe networkII ,Principle Structure1. During the use of the valve, the medium flows in the direction of the arrow shown.2. When the medium flows in the specified direction, the valve disc is opened by the force of the medium;Medium countercurrent, due to the weight of the valve disc and valve disc by the medium reverse force, so that the sealing surface of the valve disc and seat close, to prevent the purpose of media countercurrent.3. The sealing surface of valve body and disc is made of stainless steel.4, the length of the valve structure according to the provisions of GB12221-1989, flange connection size according to JB/T79-1994.III,Performance parameters:DN40-800 mmPN1.0----1.6  MPaSuitable temperatur100 C maxMediaWater, gas, oil.Company Information Processing  CertificationFAQQ: Are you trading company or manufacturer ?A: We are factory Located In Tianjin, China. Q: What's your product range?A: We produce Butterfly valve, Gate valve, Check valve, Y strainer ,Water Controlling Valve and other Pipe Accessories . Q: What's Execution Standard?A: ISO/ANSI/DIN/JIS/ EN/GOST/AS standard. Q: What's your Strong product ?A: Centre Line Butterfly valve, Eccentric Butterfly valve ,Resilient Seat Gate valve, and largest size to DN3200 . Q: How long is your delivery time?A: Generally it is 10 days if the goods are in stock. or it is 35 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ?A: Payment=10000USD, 30% T/T in advance ,balance before shipment.       /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
