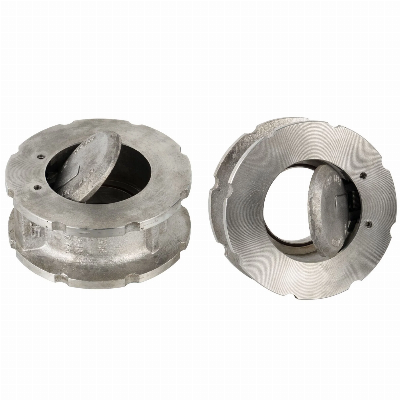

Wafer Forged Stainless Steel CF8M SS316 Single Plate Swing Check ValveProduct DescriptionCheck valve is an automatic valve, which is also called inverted valve or back valve.It relies on the flow of the medium itself to automatically open and close the disc to prevent the backflow of the medium. ln order to avoid any accidents the medium is limited for one-way flow.Check valves are mainly divided into the following types according to their structure: swing check valve, lifting check valve and butterfly plate check valve. SpecificationNO.NameMaterial Chinese Spec.ASTM Spec.1BodyStainless Steel Carbon SteelASTM A351 CF8M ASTM A216 WCB2DiscStainless Steel Carbon SteelASTM A351 CF8M ASTM A216 WCB3Shaft0CrNi18ASTM A276 304 Size:2"-12" /DN50-DN300Working Pressure: Class150Flanged Standard:ANSI B16.6/EN1092-1Working Temperature:-20ºC- 120ºCNPS22 1/234681012DN506580100150200250300L6067737398127146181Kv24.4/60138.4342.8771.21528.72570.7Cv28.5/70161.540090017843000Features/Advantages:1, Small volume, light weight, need less space.2, Gasket is needed between the flange when install this valve.3, Install position could be vertical(flow direction to up) or horizontal.4, This valve should be install at the outlet side of the pump to prevent medium back flow. It's a one direction flow valve.Production ProcessEquipment Certifications Exhibition Company ProfileShanghai Flow Valve & Fitting Co, Ltd. was founded in 1998, mainly in foreign trade export business, has invested in two professional manufacturing factories in Shanghai Jiading Waigang Industrial Zone and Tianjin Wuqing Jingbin Industrial Park.These two subordinate factories are responsible for the professional production of ANSl, DINBS, GB and other standards of ball valve, butterfly valve, gate valve, stop valve, balance valve, filter, plug valve, control valve and other series of products.Nearly 80% of the company's products are exported to Europe, America, Middle East, Southeast Asia and other parts of the world and we also conduct technical cooperation and OEM production with many European and American companies.Shanghai Flow Valve & Fitting Co., Ltd. began to actively participate in major domestic engineering projects in 2003.lt has established five sales centers in Shanghai, Beijing, Guangzhou, Xi'an and Chongqing, and its business covers Northeast China, North China, Northwest China,Southwest China, Central China, South China and other regions.The sales network and after-sales network basically cover most regions of mainland China. FAQQ1: Can I have a sample order for valve?A1:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2:Do you have any MOQ limit for valve order?A2: Low MOQ, 1pc for sample checking is available. Q3: How do you ship the goods and how long does it take to arrive?A3: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional. Q4:How to proceed an order for valve?A4: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production. Q5:Do you offer guarantee for the products?A5: Yes, we offer 1 year warranty to our products.Q6: Why choose us? A6: We are a manufacturer, we have been manufacturing for over 20 years./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
