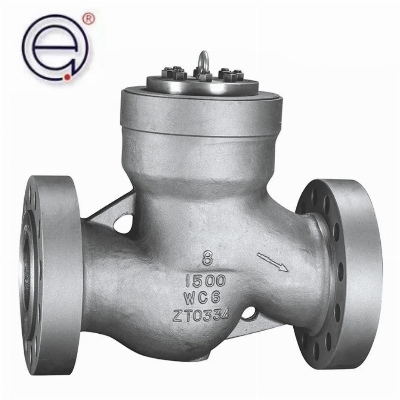

H41Y American standard lifting high-temperature and high-pressure check valve

https://owlice.en.made-in-china.comH14H self-sealing swing check valve structural features: 1. Check valves are designed and manufactured in accordance with MSSP-118 and ASME B16.34. Inspection and testing according to API 598, marking according to MSS-SP-25. 2. Full diameter or reduced diameter 3. Lifting check valve 4. Ball check valve 5. Swing check valve 6. Built-in spring according to demand 7. Bolted connection, wound gasket sealed bonnet, threaded connection, fully welded sealed bonnet and threaded connection 8. Connect internal pressure self-tightening bonnet 9. Integral upper sealing seat 10. The socket end conforms to ASME B16.11 11. Threaded connection end (NPT) conforms to ANSI/ASME B1.20.1 12. The disc can be changed into throttling type, needle type and ball type    H14H self-sealing swing check valve connection size  NPS1/2"3/4"1"11/4"11/2"2" L900LB~1500LB1401401401781782162500lb186186186232232279 H117117117152152195 weight900LB~1500LB8.27.87.719.819.221.32500lb10.09.69.421.5          Frequently asked questions:1. Yes, sample orders can be used for quality inspection and market testing. But it is not free.2. Production usually takes about 25-30 working days. For large orders, it depends on the number of orders.3. In order to recommend the right product to you, please provide details, such as size, material, pressure, model.4. Payment is mainly T/T. Payment period: 30% advance payment, 70% balance is paid before shipment or based on a copy of the bill of lading.5. The warranty period is 12 months after leaving the factory. Due to quality problems, we can repair or replace it.6. According to your requirements, we have standard models in stock. Some special products and large orders will be newly produced according to your order.7. Yes, different models can be mixed in one container.8. Quality first, we always attach importance to quality control from the beginning to the end of production. Before painting, packaging and transportation, each product will be fully assembled and carefully tested.9. Yes, we have the right to export and sell products around the world.10. Our company has passed API 6D, CE 0036 and ISO9001.TestAfter all the goods are completed, the port will be provided.For more information on our website: https://owlice.en.made-in-china.com/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
