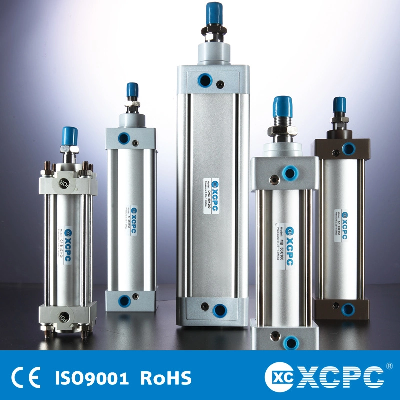

China Manufacturer ISO Standard Pneumatic Air Cylinder

SI series standard cylinder (ISO6431) 1, Features: 1). Good replacement for ISO6431 cylinder. 2). Standard design, simple structure, low starting pressure, smooth motion. 3). Spray painted cylinder head and internal hard anodized cylinder body. 4). With slot on the cylinder barrel and end covers for magnet sensor mounting more conveniently. 5). Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safely and with low noise. 6). Using self-lubricating bearing, the piston rod is lubrication free. 7). Precision grinding piston rod to guarantee long working lifetime. Ordering CodeSpecifcationBore(mm)3240                       5063                   80100                125160                  200Motion PatternDouble ActionWorking MediumAirFixed TypeNormal type FA/Type FB/Type CA/Type CB/Type SDB/Type LB/Type TC/TypeWorking Pressure Range0.1~0.9MPaEnsured Pressure Resistance1.35MPaOperating Temperature Range-5~70ºCOperating Speed Range50~800mm/sBuffer TypeAdjustable BufferBuffer Stroke2432Port SizeG1/8"G1/4"G3/8"G1/2"G3/4"Overall Dimensions3, Internal Structure: 1). Piston rod nut 2). Piston rod 3). Front cover seal ring 4). Bearing 5). Front cover 6). Buffering O-Ring 7). O-Ring 8). Piston rod O-Ring 9). Piston O-Ring 10). Magnet(Optional) 11). Wear Ring 12). Barrel 13). Piston 14). Cushion Seal 15). Cushion Needle 16). Back cover 17). Hex socket screw 18). Profile bolt ApplicationCompany InfoPackageing & ShippingFAQOther ISO Standard Pneumatic Cylinders are also available for you: DNG ISO15552 Standard cylinder SI ISO6431 Standard cylinder SC ISO6430 Standard cylinder MA ISO6432 Mini cylinder ADVU ISO6431 Compact/Thin cylinder Our company also can provide other pneumatic cylinders as below, 1. Standard cylinder: SC/SU, MB, CA1 2. Compact cylinder: SDA, CQ2 3. Mini cylinder: MA, MAL, CJ2, CM2, CJP 4. Double-shaft cylinder: TN, CXS 5. Free installation cylinder: CU 6. Slide bearing cylinder: STM 7. Three-shaft cylinder: MGP 8. Stopper cylinder: RSQ 9. Clamp cylinder: XCK 10. Rotary cylinder: MSQ 11. Rodless cylinder: CY1 12. Air gripper: XHZ2/XHC2, XHL2, XHT2 More information and details, you can contact us and visit our website. If you have the nonstandard products want to design, don't hesitate to contact us. XCPC is your good choice in Pneumatic!  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
