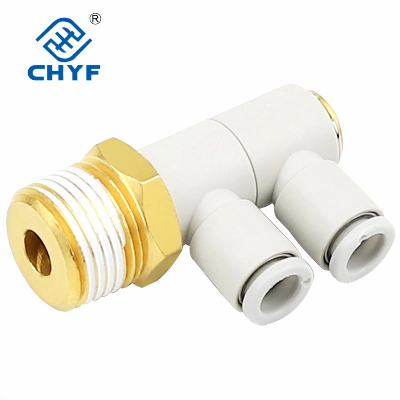

Brass Plastic 2 Way 4 Way Air Pipe Tube Pneumatic Fitting

SpecificationsFluidAir/WaterMaximum operating pressure1.0 MPaOperating vacuum pressure-100 kPaProof pressure3.0 MPaAmbient and fluid temperature-5 to 60°C, Water: 0 to 40°C (No freezing)ThreadMounting sectionJIS B 0203 (Taper thread for piping)JIS B 0209, Class 2 (Metric coarse thread)Nut sectionJIS B 0211 Class 2 (Metric fine thread)Thread seal (Standard)With thread sealCopper/Copper-free (Standard)Brass/Brass parts are all electroless nickel plated.Pneumatic quick coupling is a quick coupling mainly used for air piping and pneumatic tools. It can realize pipeline connection or disconnection without tools. When the ferrule of the mother body moves to the other end, the stainless steel ball automatically rolls outwards. The body is disconnected under the action of the common valve spring force of the parent body and the child body, and the valves of the child body and the parent body are closed separately, instantly blocking the flow of fluid./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
