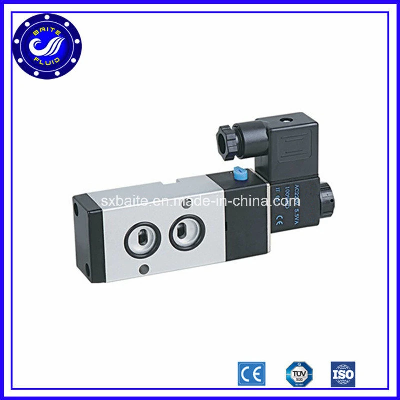

high quality 4V 3V Series flow control mechanical pneumatic solenoid valvesProduct Features Dynamic/static armature made of Germany stainless steel material, fast responseMold of pilot seat is made by top-level supplier, high precision for plastic partsSpool one-time-machined from superior aluminum alloy rod , by high precision Japan CNCValve body use 6061-T6 aluminum alloy ,ensuring clean and rigid threadSpecial mini filter is designed on pilot exhaust port, cleaner inner airIntegral coated coil by thermosetting BMC, IP65 protection, low temperature rise, longer lifeMachining + Assembly + Testing automation production streamlines, high stability and consistencyFunction various 5/2, 3/2, 5/3, solenoid control, air control, size ranges 1/8"-1/2 .Product specificationsModel4V110-064V210-084V310-104V410-154V120-064V220-084V320-104V420-154V130-064V230-084V330-104V430-15Orifice Size(mm)12mm(Cv=0.67)16mm(Cv=0.89)30mm(Cv=1.68)50mm(Cv=2.79)Port SizeG1/8"G1/4"G3/8"G1/2"Acting TypeInternal pilot or external pilotWorking MediumAir (to be filtered by 40μm filter element) Valve Type5 port 2 position and 5 port 3 positionOperating Pressure0.15-0.8Mpa(21-114psi)Proof Pressure1.5Mpa(215psi)Max. Pressure Resistance(kgf/cm2)1210.5Operating Temperature(°C)-20~70°CMaterial of bodyAluminum alloyVoltageAC220V,AC110V,AC24V,DC24V,DC12V Product DescriptionProduct DetailsRelated ProductsProduction WorkshopQuality AssuranceMain Equipment:automatic coil winding machine, precision automatic die-casting machine, precision extrusion machine, forging machine, CNC machine, milling machine, turning and milling machine, four-axle CNC milling machine, injection machine, vulcanizing machine, surface treatment, electro coating line, automatic painting line, sealing parts pressing machine, as well as 200 testing devices like projectors, direct-reading spectrometer, 3D measuring apparatus, salt spray testing machine, and 10 automatic processing lines.Perfect Inspection Process: Raw material inspection (5steps)- Raw materials testing is to ensure the raw material conforming to the order requirements.Process testing(10steps)-Each processing step testing is to guarantee each step product qualified.Factory testing(6steps)-Assure 100% product qualified rate to meet customer's requirementsContact Us /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
