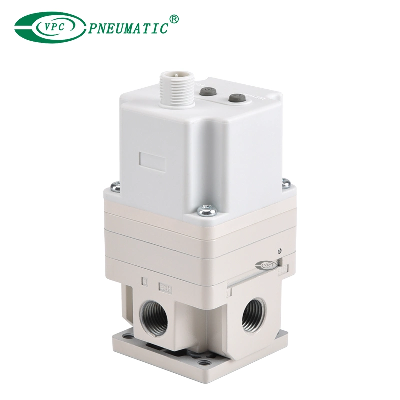

SMC DC24V Itv Series Electric Regulator Proportional Pneumatic Valve

SMC ITV1050 ITV3010 ITV3050 ITV3010 Electro Pneumatic Pressure Air RegulatorProduct DescriptionSMC DC24V ITV series Electric Regulator Proportional Pneumatic ValveThe electric proportional valve controls the gas pressure through the electric signal, which can realize the continuous and stepless adjustment of the gas pressure, and can realize the remote control and program control.1) electric proportional mode, realizing non-pole control of outlet pressure. 2) it can realize remote control and program control.3) compared with intermittent control, the system is simplified and the components are greatly reduced.4) compared with hydraulic proportional valve, small volume, light weight, compact structure, lightweight, low cost, but the response speed is much slower than the hydraulic system, more sensitive to load changes.5) low power consumption: less than 4W (communication form).6) no fire, no pollution.It is less affected by temperature change. Ordering CodeProduct specifications Model ITV1010 ITV1030 ITV1050 ITV2010 ITV2030 ITV2050 ITV3010 ITV3030 ITV3050 Minimum supply pressure Set pressure + 0.1 MPa Maximum supply pressure 0.2 MPa 1.0 MPa Set pressure range *1 0.005 to 0.1 MPa 0.005 to 0.5 MPa 0.005 to 0.9 MPa   Power supply Voltage 24 VDC ±10% Current consumption 0.12 A or less   Input signal Current type 4 to 20 mA DC, 0 to 20 mA DC Voltage type 0 to 5 VDC, 0 to 10 VDC   Input impedance Current type 250 Ω or less Voltage type Approx. 6.5 kΩ Output signal (Monitor output) Analog output: 4 to 20 mA DC (Source type) Linearity ±1%F.S. or less Hysteresis 0.5%F.S. or less Repeatability ±0.5%F.S. or less Sensitivity 0.2%F.S. or less Temperature characteristics ±0.12%F.S./°C or less   Output pressure display *2 Accuracy ±2%F.S. ±1 digit or less Minimum unit MPa: 0.001, kgf/cm2: 0.01, bar: 0.01, psi: 0.1 *3, kPa: 1 Ambient and fluid temperatures 0 to 50°C (No condensation) Enclosure IP65     Weight TV10▭0 Approx. 250 g (without options) ITV20▭0 Approx. 350 g (without options) ITV30▭0 Approx. 645 g (without options) *1. When the product is in an "as-shipped" condition, the output pressure when a 0% input signal is applied is 0 kPa. However, there are some cases in which there is a residual pressure of 0.005 MPa or less. If the pressure needs to be reduced to 0 kPa, install a 3-port valve on the output side to exhaust the residual pressure. *2. The adjustment of a numerical value such as zero or span adjustment is set based on the minimum unit of the output pressure display. (Example: 0.001 to 0.500 MPa) Note that this unit cannot be changed. *3. The minimum unit for 0.9 MPa (130 psi) types is 1 psi.* The above characteristics are confined to the static state. When air is consumed on the output side, the pressure may fluctuate.Detailed PhotosProduct Parameters   CatalogueCompany Profile Ningbo VPC Pneumatic company is dedicated to providing the highest quality hydraulic and pneumatic products in order to assure we achieve the requisite level of product performance, reliability and value for our customers.We manufacture and export Pneumatic Cylinders,Directional Solenoid Valves,air fittings,air hose,air preparation units ,pressure regulators,etc pneumatic automation components,these are widely used in automatic industrial,robots, packaging equipment, blow molding machine equipment and Medical Industry,food and beverage, metals, mining and minerals, life sciences, automotive, marine, transportation, wood, paper and printing industries. Export to Europe,latin america the USA,South Asia and middle East,because of high quality, As a 20 years manufacture,we can rovide professional solutions according to your application needs and use industry.Here are what we can provide with you 1:Customized products to save your costs 2:Fast delivery and standard package 3:200% test before ship 4:CE/ROHS/ISO/FDA certificate   Packaging & ShippingExpress(DHL,UPS,TNT,FEDEX) are all available.Sea and Air transports are available.The most suilable transport way will be chosen for you.FAQ:Q1:Are you trading company or manufacturer ?A:We are the Manufacturer from Ningbo,China .We can customize as your requirement,but MOQ requrement.Q2:What is your quality assurance ?A:We have strict quality control.If you suffer losses due to transportation or quality failure,you can choose a refund or we can ressue your new goods,the freight will be borne by us.Q3:Do you provide samples ?Is it free or extra ,A:Yes,free samples can be provided,  but you'll pay for the shipping fee.Q4:How long can I expect to get the sample and mass order ?A:For conventional  sample order,the delivery time is in 5 workdays,and for mass order,the delivery time is in 10 workdays. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
