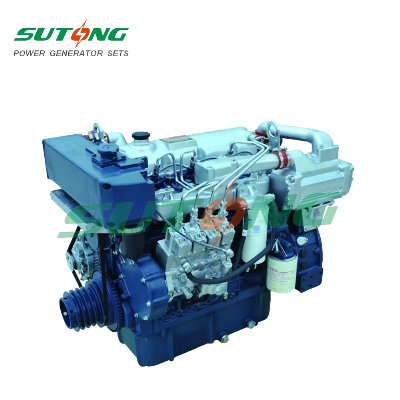

Water Cooled 4 Cylinder Yuchai Marine Diesel Engines with Zc CCS Certificate

Water Cooled 4 Cylinder Yuchai Marine Diesel Engines With ZC CCS CertificateProduct DescriptionΔ YC4D SERIES FEATURES ·   This series diesel engine developed with Germany marine technology. ·   Cylinder block,cylinder head use high strength alloy to cast manufacturing,better rigid,      with integral type crankshaft and sliding bearing,small volume light weight,high reliability.      Overhaul period is more than 10000 hours.       ·    With high performance combustion chamber and the intake swirl ,the fuel consumption is        superior to domestic products.  ·    With YUCHAI proprietary piston ring seal technology and vavle seal technology,lubricating      oil consumption is lower than domestic power transmission products with more than 50%. ·    Is the ideal power for small ships and small fishing vessels and 24-40kw marine generator sets.Detailed Photos Product ParametersModel:YC4108ZCYC4D75CYC4D100Z-C20YC4D120Z-C20Type:Vertical,In-line,water-cooled,four-strokeIntake  way:Turbo-charged No. of cylinders-Bore*Stroke(mm):4-108*115Displacement  (L):4.214Compression ration:17:01Continuous power/speed (kw(Ps)/r/min):5070)/150055(75)/180075(100)/240090(120)/3000One-hour power/speed (kw(Ps)/r/min):55(75)/154860.5(80)/185882.5(110)/247899(135)/3096Min specific fuel consumption (g/kw·h):≤198Specific oil consumption (g/kw·h):≤0.5Crankshaft rotation direction (see frompower output end):AnticlockwiseStarting way:ElectricalNet weight  (kg):390Overall dimension (L*W*H):1043*741*1099Matched reduction gearbox:HC65,MB170,MBS170 etcHC35,MB170,MBS170 etcCertificate:ZC,CCSZCModel:YC4108CYC4108ZCType:Vertical,In-line,water-cooled,four-strokeIntake  way:Natural aspiratedTurbo chargedNo. of cylinders-Bore*Stroke(mm):4-108*115Displacement  (L):4.214Compression ration:17:01Continuous power/speed (kw(Ps)/r/min):44(55)/150050(70)/2400One-hour power/speed (kw(Ps)/r/min):44(60)/154855(75)/2478Min specific fuel consumption (g/kw·h):≤200Specific oil consumption (g/kw·h):≤0.5Crankshaft rotation direction (see frompower output end):AnticlockwiseStarting way:ElectricalNet weight  (kg):370390Overall dimension (L*W*H):986*730*9481043*741*1099Adapted for marine gen-set:24/3030/40Certificate:ZC,CCSModel:YC4108CYC4D55CYC4D80-C20Type:Vertical,In-line,water-cooled,four-strokeIntake  way:Natural  aspiratedNo. of cylinders-Bore*Stroke(mm):4-108*115Displacement  (L):4.214Compression ration:17:01Continuous power/speed (kw(Ps)/r/min):40(50)/150040(55)/180058(80)/2400One-hour power/speed (kw(Ps)/r/min):44(60)/154844(860)/185863.8(85)/2478Min specific fuel consumption (g/kw·h):≤200Specific oil consumption (g/kw·h):≤0.5Crankshaft rotation direction (see frompower output end):AnticlockwiseStarting way:ElectricalNet weight  (kg):370Overall dimension (L*W*H):986*730*948Matched reduction gearbox:H35,MB142,40A,MB170,MBS170 etcCertificate:ZC,CCSZC  Certifications Our PartnerCompany Profile  FAQQuestion: What's your warranty period?Answer: Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.Question: Does your generators has global warranty?Answer: Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.Question: Do you accept OEM/ODM service?Answer: Yes, we can accept OEM.Question: What's your payment terms?Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union. Question: What's your delivery time?Answer: Our normal delivery time is 25 working days. But if your order is some special engine and alternator, then the delivery time is longer.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
