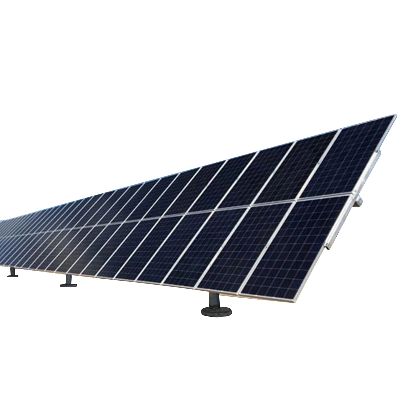

Solar Photovoltaic Panels Bracket Single Axis Solar Tracking System Sun Tracker

Solar Photovoltaic Panels Bracket Single Axis Solar Tracking System Sun Tracker  Product ParametersTracker StructureTracking ControllerModelSASTController TypeMCU (32bit)Solar Panel Type1650*992*35mm (78 Cells)Control AlgorithmAstronomical AlgorithmPosition Sensor Closed Loop ControlNumber Of Solar Panels60 PCSProtocolRS485Solar Panel ArrangementVertical ArrangementWind ProtectionHaveGround Clearance400 mmNight Return ModeHaveGrid Area≈100~200 m2Backtracking AlgorithmHaveSystem Weight≈ 1300 kg/SetProtection LevelIP65Safe Working Wind Speed17 m/sNetwork Communication TypeLocal Network: BluetoothRemote Network: Optional-WIFI   -4GSurvival Wind Speed37m/s (Wind Speed Can Be Customized,85umDrive Device(X) 1*Slewing Drive + (Y) 1*Linear DriveFastener MaterialA2-70304 Stainless SteelTracking Accuracy≤±2°Mechanical Design Life (Y)>25System Power SupplyAC 100V~240V (Optional Lithium Battery Emergency Power)Foundation FormConcrete Foundation (Customized Steel Structure Foundation)Working TemperatureNormal -30ºC~+70ºCCustomizable -50ºC~+85ºCAzimuth Tracking Range X Axis-45°~+45°System VoltageDC24Azimuth Tracking Range Y Axis-60°~60° (Customizable Angle)Drive Power (W)90~180WDetailed PhotosApplication AreasCompany ProfileProject CasesCertifications/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
