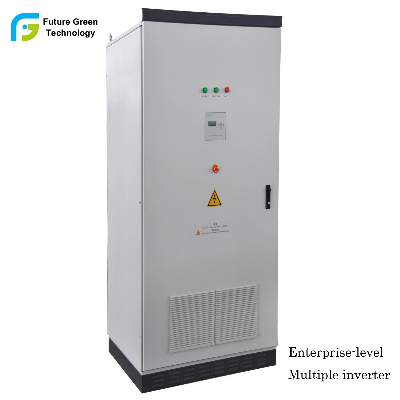

100kw Power Plant Solar Wind Diesel Inverter with MPPT Controller

100kw Power Plant Solar Wind Diesel Inverter with MPPT Controller  Product Description 1. The main circuit use DSP chip which produced by American Tl Company, Japan Mitsubishi IGBT module, drive protection is Japan's Mitsubishi chip, off grid output use isolation transformer, safe and reliable .2. Adopt SPWM pulse width modulation technology, pure sine wave output, power factor is close to 1, current harmonic content is low;3. Inverter current closed-loop control, controllable and adjustable;4. DC maximum power tracking technology (MPPT);5. DC input voltage with wide range , adapting to different occasions;6. With a full range of power protection and comprehensive self-detection and protection. When system failure the off-grid inverter will be stopped;7. The circuit structure is compact and the maximum efficiency is >95%;8. Optional RS485 communication, PC monitoring, remote data collection and monitoring.  Detailed Photos   Products ParametersModel1022015220202203038040380503806038080380100380DC inputInput rating voltage ( VDC )220380Input rating current ( A)50.575.710185.8114.4143171.6228.8286Input DC voltage allowing range ( VDC )187-300335Vdc-650VdcAC outputOutput rating power ( kW )10KW15KW20KW30KW40KW50KW60KW80KW100KWOutput rating voltage and frequency380 Vac, 50HzOutput rating current ( A)15.222.730.345.560.675.991.1121.5151.9Output voltage precision (V )AC380/220V±3%Output frequency precision ( Hz)50±0.05Wave distortion ( THD ) (liner load )
