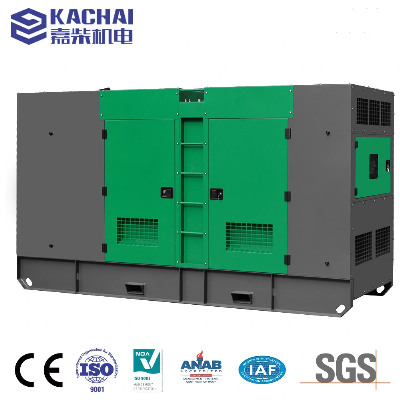

Silent Soundproof Power Electric Home-Use Industrial Diesel Engine Generator

Tag: Silent soundproof Power Diesel Generator Set with FAW/ YTO/ Forward / ISUZU/ Yuchai/ cummins/Quanchai Diesel engine   SPECIFICATION OF DIESEL GENERATOR  MODELSCD20DPowered by CUMMINS diesel EnginePrime Power (50HZ)20kw/25kvaStandby Power (50HZ)22kw/28KVAPower Factor0.8 (Lagging)Phase Wires3-phases 4-WiresStart ModelElectricEngine ModelCummis 4B3.9-G2Cylinders4Bore x Stroke(mm)102*120Compression Ratio17.3:1Speed1500rpmCooling MethodWater - cooledAspirationNaturally AspiratedFull Load Diesel Consumption (L/H)35LEngine Displacement (L)3.9Coolant Capacity - Engine Only7.2LType Injection SystemBYC A Direct InjectionGoverned Speed345KpaNoise (Db)≤ 75Governor TypeElectrical GoverningAlternator ModelKachai  K184CVoltage400VProtectionIP23Voltage Regulation±4%Insulation ClassHVoltage ControlAVRNet Weigh (KGS)900The unit used Heavy-duty design, single point lifting, safe operationAs for fuel tank , there are                  -Chassis fuel tank                                  -Front fuel tank                            -Independent fuel tank  both availableFull outdoor anti-corrosion electrostatic spary , strong adhesion,environmental protection, corrosion resistance Generator anti-vibration pad mountings on skid , function stableAlloy lub oil outlet, antifreeze and drain outlet .Emergency stop attached button , when something else happen, ensure safety Aisikai ATS is optional if needed .Intelligent controller ,standard Deepsea, ComAP , and more optional contact .CAMEL battery , battery isolator switch ,with electric float charger .3. STANDARD CONFIGURATION OF DIESEL GENERATOR1.) Closed water-cooled diesel engine2.) AC brush less generator3.) Steel CNC bending public chassis4.) 40 °C ambient temperature full protection tank radiator5.) Fully enclosed maintenance-free battery and copper battery connection cable6.) Battery negative circuit breaker7.) Aiskai molded case main breaker8.) 24V battery float charger9.) Composite high performance bowl type shock absorber10.) Industrial muffler  4. OPTIONAL / ACCESSIORIES  - Engine Part- Alternator Part- Electrical Part- OthersElectronic commissioning (for mechanical commissioning engine)External oil water separatorWater jacket / oil heaterLubricating oil pre-feed pump   PMG (Permanent Magnet Excitation System) below 600KW    Drooping device    External potentiometer    Anti-condensation heater    High-grade AVR (automatic voltage regulator)   Automatic Dual Power Switching Cabinet (ATS)    Automatic parallel (grid) cabinet    ABB/Schneider main circuit breakerChassis / independent storage tank    Fixed / mobile silent box  6.DIESEL GENERATOR ENGINE SYSTEMΔ Diesel Engine*Heavy duty diesel engine*Four stroke, water cooled*12V and 24V stater and charge alternator*Cooling radiator and fan*Maintenance free battery including ract and cable*Flexible fuel connection hoses and manual oil sump drain valve*Exhaust silencer*Machinery or electronic governing*Fuel injection pump*Electric motor starting system*Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner*Low discharge, and low fuel consumption*Installed conveniently and maintain easily  7. DIESEL GENERATOR CONTROLLER SYSTEMΔ Control SystemController Brand: Deepsea , ComAp, Smartgen , KachaiControl Panel: English interface,LED screen and touch buttons. *Control, monitor and protect the Generator Set including:*High water temperature*Low oil pressure*Over and under speed*Over current*Under/Over generator voltage*Start and stop failure*Low and high battery voltage*Charge fail*Emergency stop   8.WARRANTY OF DIESEL GENERATOR Running 1000 hours / 12months or 15months from shipment (which comes first)Improper operation and maintenance will not  be covered by the warranty.  WORKSHOP DISPLAY11.REAL-LIFE SCENE DISPLAYCOMPANY PROFILEOur factory located in Hangzhou Yuhang Economic-technological Develpment Area, Hangzhou, Zhejiang Province. It is a science and technology production enterprise integrating research, development, manufacture and sales of diesel generators and light tower. We have nearly 20 years of the industry experience of the diesel generators complete set of solutions, we have always been the leader in the power solutions industry, and the products are exported to more than 20 countries and regions around the world.We have entered into strategic partnerships or OEMs with world-renowned engine and alternators manufacturers, such as US Cummins, Germany Deutz, Korea Doosan, UK Stanford, China Yuchai, SDEC and FAWDE. The company's products have passed CE, BV, SGS and other international authority certification.Our diesel generators cover power from 6-2200 kW (7.5-2750 KVA).In order to meet the different types of applications, we can provide open generators, silent generators, container generators, mobile trailer generators, and according to different customer requirements can provide different frequency, voltage, structure and so on.Our production line is equipped with lifting equipment such as 5t
