Liquid Hydrogen Lh2 Station Oxygen Filling Pump Mobile LNG Filling Station

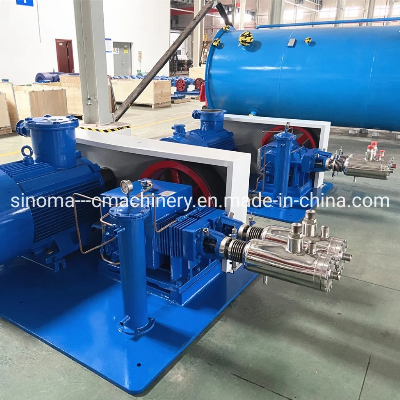

   Liquid Hydrogen LH2 Station Oxygen Filling Pump Mobile LNG Filling StationCryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps: workshopOur factory  is a technology enterprise specialized in R&D,manufacture various of air separation plant and cryogenic application equipment. Our company always insists on taking the technology as the motility, emphasizing technique and products innovation, cooperating with many scientific and research institutes, academic schools which are in the same industry range with us. It has more than 40 years of experience in research and development, design and manufacture of cryogenic products and equipment. The company has strong technical strength and has a number of national patents. Our factory passed the ISO9001:2010 quality management system certification/CE certification and obtained a number of national invention patents. Our main products:LNG/LCNG Gas Refueling Station Hydrogen Refueling StationCryogenic Liquid Gas Filling SkidCryogenic Liquid PumpAir Ambient VaporizerWater Bath VaporizerNow our company's cryogenic products has been exported to America, Italy, Bolivia, Thailand, Egypt, India, Middle East, Africa and so on.Cryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps: processing centerCryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps:cryogenic pumps spare partsCryogenic Liquid Oxygen Nitrogen Argon Gas Cylinder Filling Station Skid Pumps:cryogenic pump high pressureIntroduction to The Process Flow of Hydrogenation StationSchematic of Hydrogen Refueling Station Supplied By Tube Trailer Flow Chart for Liquid Hydrogen Station Hydrogen Refueling StationHydrogen Booster Pump With Liquid DrivenProduct IntroductionThe working principle of the equipment:the hydraulic pump station uses electricity as the power to drive the hydraulic pump to pressurize the hydraulic oil through the motor, the high pressure hydraulic oil is passed into the pump with liquid drive which through the switch solenoid valve switching and pressure valve adjustment, and the the liquid drive pump do reciprocating action to make the hydrogen pressure up.Technical Parameter:Inlet Pressure5-20MpaInlet Temperature30 degreeOutlet Pressure45MpaFlow500Kg/12hPressure Ratio1-2Drive WayHydraulic driveMax Number of Motions30 times/minDiaphragm Hydrogen CompressorProduction IntroductionA diaphragm compressor is a positive displacement machine which consists of a  hydraulic system and a gas compression system. The hydraulic system adopts a linear reciprocating piston, which is driven by a motor to drive the crankshaft of the compressor fuselage, then pushes the piston to reciprocate, so as to push the hydraulic oil to reciprocate, and so as to push the metal diaphragm to reciprocate and to energize the gas processing system.Technical ParameterCompressor Series3Inlet Pressure(Mpa/PSI)3-10/435-1450Outlet Pressure(Mpa/PSI)24-103/3500-15000Flow600-1200kg/12hCompressed FormDiaphragmHydrogen DispenserTechnical ParameterRated Working Pressure35MpaMax Working Pressure43.8MpaDesigned Pressure48.2MpaFilter Accuracy5μmFlow≤ 3.6kg/minOutlet Temperature of Heat Exchanger≤ -20ºCThe Environment Temperature-22 to 55ºCHydrogen GunSingle Gun(TK16)/Double Gun(TK25)Cryogenic Liquid Hydrogen PumpProduct IntroductionThe equipment adopts advanced sealing structure and thermal insulation technology with goods sealing performance and cold insulation performance. Transmission case have low voice performance. The equipment has high effluent efficiency.Technical ParameterModelBPH-600/98Flow600L/HMediumLH2/LN2Inlet Pressure0.02-0.8MpaOutlet Pressure98MpaPower37KWLiquid Hydrogen VaporizerProduct IntroductionThe ambient vaporizer designed by our company which uses the natural convection air in the atmosphere as the heat source for heating cryogenic liquid in the pipe. It is a new generation of heat exchange equipment with high efficiency, environmental protection and energy saving which gasifies it into a certain temperature gas.Flow800Nm3/hInlet MediumH2Outlet MediumLiquid Hydrogen or Super Critical HydrogenInlet Temperature-253ºCOutlet TemperatureAmbient Temperature -10ºCDesigned Temperature-253ºC to 40ºCDesigned Pressure150MpaWorking Pressure98Mpa-40ºC Hydrogen Precooling SystemProduct IntroductionThe device is used for the front end of the hydrogenator which can perfectly match the 70Mpa hydrogenation gun, and effectively control the temperature rise of the hydrogenation fast charging proof that hydrogenation is safer.Technical ParameterWorking MediumH2Working Pressure98MpaDesigned Pressure150MpaInlet Temperature-40ºC to -85ºCOutlet Temperature-40ºC to -33ºCThe Whole Solution of Hydrogen Refueling StationAs the leader company of gas refueling station, we have have years of experience in engineering, construction and maintenance. As we have clear understanding and know how to make hydrogen filling station. We can supply the comprehensive support to customer Su
