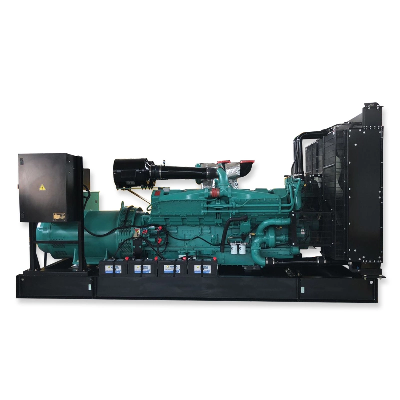

Ccw Engine 1100 Kw kVA Silent Diesel Generator Sets

+ Assembled by Cummins diesel engine and Leroy Somer/Stanford alternator.+ Three filters as standard, fuel and water separator as optional.+ Radiator and fan with safety guard.+ Single bearing alternator IP 23, Insulation Class H.+ Heavyduty steel as base frame and 8hrs operation base fuel tank.+ Automatic controlpanel and 3poles circuit breaker, internal cable+ 12V battery, battery wires. + Battery charger and float battery charger as standard supply scope.+ Optional soundproof canopy,ATS,synchronization panel,trailers.Diesel Genset Features                                                                                                                   P.F=0.8  3PhaseGenerating Set Performance 60HzService P.R.PStandbyRated outputkVA1375 1550 Active power outputkW11001240Rated Speedr.p.m1800Standard VoltageV380/220 Voltage availableV480/277-460/265 - 440/254-416/240-240/139-220/127-208/120Perforemance data refer to Standard Reference Conditions of ISO 8528:+25ºC,100m ALT,relative humidity 30% Power reduction acc.to DIN ISO 3046 Standard values:Above 100m ALT approx.1% per 100m.Above 25ºC(77ºF) approx.4% per 10ºC(50ºF). Considering cos phi=0.8Prime Mover Performance                                                                             1800 r.p.mSERVICE P.R.PStandbyRated outputKW12311376Manufacturer Cummins4 stroke Diesel Engine - Injection type DirectAspiration type Turbocharged&AftercooledCylinders,number and arrangement 12 -VBore×Strokemm 159X159Total DisplacementL37,7Cooling system WaterEmission Certification U.S. EPA Tier 2Compression ratio 15.0:1Specific fuel consumption(P.R.P)L/h298Specific oil consumption(at full load)%
