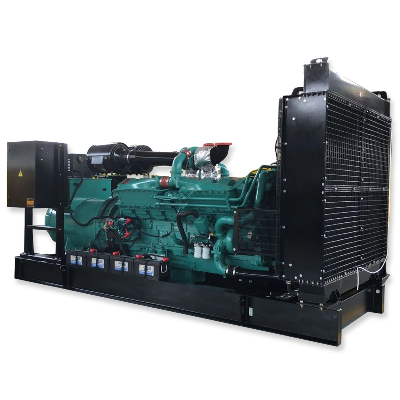

900kw 1125kVA Ccw Diesel Generator Set Assembled by Gtl Power System

+ Assembled by Cummins diesel engine and Leroy Somer/Stanford alternator.+ Three filters as standard, fuel and water separator as optional.+ Radiator and fan with safety guard.+ Single bearing alternator IP 23, Insulation Class H.+ Heavyduty steel as base frame and 8hrs operation base fuel tank.+ Automatic controlpanel and 3poles circuit breaker, internal cable+ 12V battery, battery wires. + Battery charger and float battery charger as standard supply scope.+ Optional soundproof canopy,ATS,synchronization panel,trailers.Generating Set Performance 60HzService P.R.PStandbyRated outputkVA1000 1125 Active power outputkW800 900 Rated Speedr.p.m1800Standard VoltageV380/220 Voltage availableV480/277-460/265 - 440/254-416/240-240/139-220/127-208/120Prime Mover Performance                                                                             1800 r.p.mSERVICE P.R.PStandbyRated outputKW9151007Manufacturer Cummins4 stroke Diesel Engine - Injection type DirectAspiration type Turbocharged&AftercooledCylinders,number and arrangement 12 -VBore×Strokemm 159X159Total DisplacementL38Cooling system WaterEmission Certification N.ACompression ratio 14.5:1Specific fuel consumption(P.R.P)L/h223,72Specific oil consumption(at full load)%
