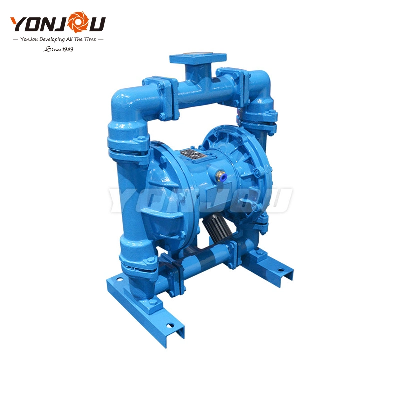

Qbk Air Operated Driven Double Diaphragm Pump

Summarize:1.QBY Air Operated (Pneumatic) Double Diaphragm Pump is a positive displacement pump, adopting compress air, smoke and industry exhaust gas as power source.2. It has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.3. QBY air operated double diaphragm pumps can not only transfer the flow liquid, but also can transfer some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc. Product details:Working Principle:Double Diaphragms, PneumaticMain applications:       Oil, Water, Chemical, etc.Driver:Air OperatedMax.permissible fluid temperature:150°C(302°F)Type of connection:Flange, Thread, Quick coupledInstallation position:Connect to compressorCasing parts material:C.I, S.S, PP, Aluminium, PVDF, PTFE linningMaximum grain diameter:10mm (3/8inch)Maximum drive rating: 7kgf/cm2Maximum caliber:  100mm(4inch)Maximum discharge-side pressure:6kgf/cm2Maximum head:50m(164ft)Flow rate range:  0.8-30m3/h(3.5-132US.GPM) Performance Data:  ModelSizeMax CapacityMax PressureMax air consumptionMax air pressureMax particle diameterMMINCHM3/hUSGPMMPSIM3/MINBARMMQBK1010381.56.60 801160.14 8.0 2.5QBK15151QBK25251939.631.12 5QBK40401-1�.555.041.35 QBK505022088.062.8 6QBK65652-1�.594.662.8 QBK8080325110.073.0 10QBK1001004  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
