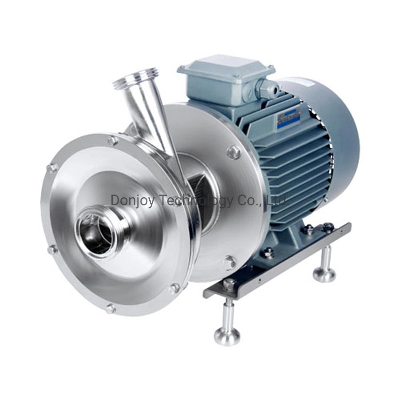

Lx Sanitary Centrifugal Pump for Transfer Liquid

Milk Centrifugal Impeller Pump for Low Viscosity LiquidLX series centrifugal pump, not only optimize the internal structure such as impeller design, dead angle treatment, mechanical flushing area, but also optimize external sanitation of the pump, which makes its internal absolute sanitation and external reduction of dead angle.Since there's no dead angle area, it's easy to be cleaned by CIP and sterilized by SIP. In addition, LX series pump, has been kept with the maximum flexibility of combined applications, for example, the pump outlet angle can be arbitrarily adjusted from 0° to 135°. Pump cover is adopted by handwheel nut, which keeps high efficiency in the maintenance of the pump and replacement of mechanical seal, and reduces the highly professional requirements on maintenance personnel without special tools.Therefore, the LX series centrifugal pump has been achieved the goal of high efficiency, health, high reliability and low cost, making it a high performance pump.SpecificationProduct Name:Centrifugal PumpValve Body Material:SS304 / SS316L / 1.4301 / 1.4404Seal Material:EPDM (Standard, FDA approval) FPM(Viton) and NBRMax. Flow:150 m3/hMax. Speed:3600 min-1, 2900min-1Max. Head:70H(m)Max. Working Pressure:7 bar/99 PSIMax. Working Temperature:120 °CMechanical seal:SIC / SiC / EPDM (Standard), C / SIC, TC / TCMotor power:1.1kw, 1.5kw, 2.2kw, 4.0kw-18.5kwVoltage:110V, 220V, 380VMotor:domestic / SIEMENSMotor Frequency:50HZ, 60HZAvailably connection:Tri-Clamp, Thread, FlangeOperation:ElectricCertification:3A, EC, FDA, ISOApplication scope: Dairy,food, beverage, pharmacy, cosmetic, beer etcMotor selection:According to actual situationStructure:Trolley is optional Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
