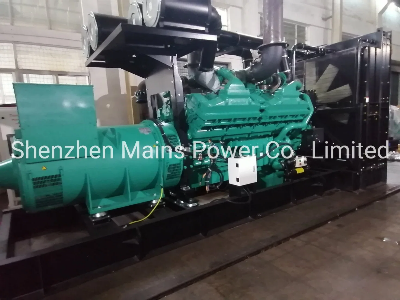

2250kVA USA Cumins Diesel Generator Mc2250d5 Standby 2250kVA Power Generator

Cumins Engines with advanced designe, reliable performance, durable operation Alloy-steel and connecting steel-lever, high durability High combustion efficiency and low fuel consumption, work continuously P/T pump injection technology, low cost, completely conbustion Optimized-design anti-vibration system, accurate pressure-boost and low speed cooling fan reducing noise effectively Alternator exciting system making generator set recover under any sudden loading with frequency falling, ensuring power supplying reliably Generator set can be 100% in sudden load or 100% sharp reduction, 110% loading for Standby power Genset model:   MC2250D5 Standby power: 2250KVA/1800KW Rated power:     2000KVA/1600KW 50HZ, 1500RPM, 230/400V, 3 phase 4 wire, 16 cylinder V type, Engine model: QSK60-G4, Alternator: Stamford, Marathon, Leroy Somer, MECC Alter Controller: Deepsea, ComAp, Woodward Breaker: ABB,  DELIXI, CHINT   ENGINE BASIC DATA   LUBRICANTION SYSTEM  NO. of Sylinder & type16  Vee type Lubricant Oil capacity (L)261Aspiration  Turbo charged and Low temperature aftercooled FUEL SYSTEM     Max fuel inlet temperature (ºC)60Bore*Stroke(mm)159*190 Max fuel inlet restriction(mm Hg)203Displacement (L) 60.2 Max.fuel flow to pump(L/h)1893Compression ratio14.5 : 1 CONSUMPTION----Genset  Rated speed(RPM)1500 112% (L/h)1800KW/2250KVA432Engine Rated power1730KW/ 2162KVA 100% (L/h)1600KW/2000KVA394Engine Gross power1915KW/ 2394KVA 75% (L/h)1200KW/1500KVA291Regenerative power (KW)153 50% (L/h)800KW/1000KVA200Piston speed(m/s)9.5 Continuous1400KW/1750KVA335EXHAUST SYSTEM  Standard cooling  Max.back of pressure (mmHg)51 Coolant capacity(with radiator) L410Exhaust gas flow at set rated load, m³/min320 Cooling air flow, m3/min1560Exhaust gas temperature, ºC450 ELECTRIC SYSTEM  AIR INTAKE SYSTEM   Battery  2*12VCombustion air, m³/min140.8 Cranking motor (V)24V DCMax air cleaner restriction, mm H2O635 Battery changing system40A    50HZ, 1500rpm, 380-415V, 3phase 4 wire, Genset ModelStandby PowerPrime PrimeEngine ModelAlternator ModelDimension(Open type)Weight (kg)L/h @100% KVAKWKVAKWMC22D5221820164B3.9-G1PI144D1800*750*14508205.4MC28D5282225204B3.9-G1PI144E1800*750*14508505.8MC33D5332630244B3.9-G2PI144G1800*750*14508806.7MC44D5443540324BT3.9-G2PI144J1900*750*14509809.3MC55D5554450404BTA3.9-G2UCI224D1920*780*1500102011.5MC66D5665360484BTA3.9-G2UCI224E1920*780*1500105013.1MC88D58870.480644BTAA3.9-G11UCI224F1950*780*1500108015MC100D51008090726BT5.9-G1UCI274C2550*880*1600128022MC110D511088100806BT5.9-G2UCI274C2550*880*1600130024MC125D5125100112906BTA5.9-G2UCI274D2550*880*1600145027MC150D51501201351086BTAA5.9-G2UCI274E2550*880*1600155029MC175D51751401601286BTAA5.9-G12UCI274F2600*950*1700165037MC200D52001601801446CTA8.3-G2UCI274G2600*950*1700171040MC220D52201762001606CTAA8.3-G2UCI274H2600*950*1700176045.4MC250D52502002251806CTAA8.3-G9UCD274J2800*1000*1700198053MC275D52752202502006LTAA8.9-G2UCDI274K2800*1000*1700200053MC315D5315252285228NTA855-G1AS4L1D-D413200*1100*1850335061.3MC330D53302643002406LTAA9.5-G3S4L1D-D412900*1000*1700240057MC350D5350280320256NTA855-G1BS4L1D-D413200*1100*1850335071.4MC380D5380304350280NTA855-G2AS4L1D-D413200*1100*1850338071.9MC400D5400320365292NTA855-G4S4L1D-F413200*1100*1850352085.4MC440D5440352400320NTAA855-G7AS4L1D-F413300*1155*1850387094MC500D5500400450360KTA19-G3S4L1D-G413400*1400*2040395097MC500D5A500400450360QSZ13-G2S4L1D-G413200*1100*1850365092MC550D5550440500400KTA19-G3AS5L1D-C413400*1400*20404100106MC550D5A550440500400QSZ13-G3S5L1D-C413200*1100*18503680107MC625D5625500550440KTAA19-G5S5L1D-D413400*1400*20404400113MC660D5660528600480KTA19-G8S5L1D-E413400*1400*20404580127MC690D5690552625500KTAA19-G6AS5L1D-F413400*1400*20404650113MC700D5700560650520VTA28-G5S5L1D-F413980*1720*22306200140MC715D5715572650520QSK19-G4S5L1D-F413750*1550*19604600120MC750D5750600688550QSK19-G11S5L1D-G413750*1550*19604800135MC825D5825660750600VTA28-G6S5L1D-H414000*1870*21006560162MC900D5900720810648KTA38-G2BS6L1D-C44600*1850*22007200181MC1000D51000800918735KTA38-G2AS6L1D-D44600*1850*22007450191MC1100D511008801000800KTA38-G5S6L1D-E44600*1850*22007550209MC1250D5125010001125900KTA38-G9S6L1D-F44600*2060*22007900232MC1375D51375110012501000QSK38-G5S6L1D-G44700*1850*22007800240MC1400D51400112012501000KTA50-G3S6L1D-G45000*2100*26009800254MC1500D51500120014001120KTA50-G8S6L1D-H45250*2150*235010500289MC1675D51675134015001200KTA50-GS8S7L1D-C415250*2150*235010600295MC1875D51875150016801344KTA50-G15S7L1D-D415300*2150*235011000320MC2000D52050164018751500QSK60-G3S7L1D-F416200*2280*254015200355MC2250D52250180020001600QSK60-G4S7L1D-G416200*2280*254015500394MC2500D52500200022501800QSK60-G21S7L1D-J416200*2490*310017500446MC2750D52750220025002000QSK78-G9LVS1804R5800*2310*230020600488MC3000D53000240027502200QSK78-G9LVS1804S5800*2310*230020600540MC3300D53300264030002400QSK78G6LVS1824G5800*2310*23002060059660hz, 1800rpm, 220-480V, 3phase 4 wire, Genset ModelStandby powerPrime powerEngine modelAlternator modelDimensionWeightL/hKVAKWKVAKWMC33D63326.430244B3.9
