Biogas Gas Generator Set or Electric Generators Prices

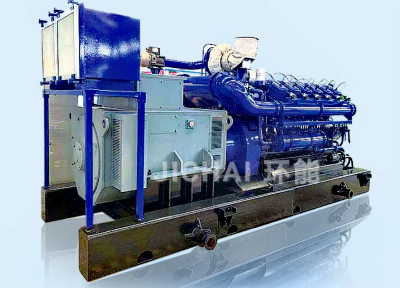

Biogas Gas Generator Set or Electric Generators PricesJichai Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adaptability, high stability and low fluctuation. The generator is desirable for industrial power solution.    500kw Bio gas engine generatorThis 500kW Biomass Generator is equipped with M12V190ZL Gas engine as original power, and possesses the following outstanding characteristics and functions:   A) The output voltage can be 400V, 6300V, 10500V, reducing the initial investment and running cost.B) Big bore of 190mm ensures its continuous constant power output.C) Middle speed of 1000rpm ensures the service life.D) Natural aspiration ensures the safety of coal bed methane delivery.E) Easy maintenance and low noise.500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit  Biomass power plant CogenerationMAIN SPECIFICATIONS OF GAS GENERATOR SETModel500GFM Gas Engine ModelM12V190ZLRated power500kw Alternatorsynchronous brushless generatorRated voltage400 V Insulation classFRated speed1000rpm Voltage regulationAutomaticRated frequency50Hz Class of protection IP22Rated current1281A Cooling methodWater cooling with radiator and fanPower factor0.8 Lagging Dimension (mm)5750×2650×2500mmControl modeElectric control Net Weight (kg)14500 KgMAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR   500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit  Biomass power plant CogenerationVoltageStabilized regulationInstantaneous regulationRecovery timeFluctuation±2.5%+20%2 S1%FrequencyStabilized regulationInstantaneous regulationRecovery timeFluctuation0-5% adjustable≤±10%< 7 S1%MAIN SPECIFICATIONS OF GAS ENGINE500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit  Biomass power plant CogenerationTypeM12V190ZLNumber of cylinders12Cylinder ArrangementVee,60°Cylinder diameter x stroke 190×210 mmTotal Displacement71.5 LIntake TypeTurbocharged and inter-cooledRated Power,kW750Rated Speed,r/min1000Biogas input pressure,kPa5-10Exhaust Temperature before turbocharger,ºC≤650    SAFETY AND PROTECTION DEVICE OF THE GENSETS  Output voltage too low/too high alarm and stopSingle phase connection trouble alarm and stopFrequency too high/too low alarm and stopCooling water temp high alarmReverse power alarm and break brakeLubrication oil temp too high alarmOverload alarm and break brakeLubrication oil pressure too low alarm and stopOver speed alarm and stopBattery voltage too low alarmBlast prevention of air inlet and crankcaseGas leaking protection    500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit CogenerationCONTROL PANELControl panel is panel type, vertical structure, model is GPL500. Control panel is equipped with meters showing various parameters of operating status, automatic air switch and timer. All of the electric cells possess three-proof functions.The Generator possesses the following automatic monitoring and protective functions:A) Audio or visual alarm for:-   High oil and water temperature-   Low oil pressure-   Over current-   Short circuit-   Over-speed-   Reverse powerB) Shut-off for:-   Low oil pressure-   Over-speed-   Short circuit-   Over-speed-   Reverse powerC) Trip-off for:-   Over-current-   Short circuit-   Reverse powerThe generator can not only supply power directly to load but also can be paralleled running.OPTIONAL DEVICE     Steel Soundproof Container (sound attenuated canopy)  More Technical date,feel free to contact jichaipower @ outlook.  comCONTAINERIZED GENERATOR SET  (OPTIONAL)Framework adopts high strength steel and I bar to form the base. The sound-proof container is equipped with explosion-proof lighting,air blower, combustible gas leakage alarm etc. to satisfy protection requirements. Noise reduction measures should meet national standard requirements, which requires noise should not be more than 85db at 1m distance away from the generator. Flat bed radiator is laid on the roof of the container which requires high quality of the container strength500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit  Biomass power plant CogenerationCHP/ Cogeneration/CCHP TrigenerationIn order to make full use of total thermal energy from combustible gas, customer requires CHP system on the basis of power generation use. This system consists of heat exchanger, liquid supply pump or hot liquid circulation pump, valves and insulation liquid pipe. The above components form a circulation system, with liquid  supply pump or hot liquid circulation pump as power source.It adopts heat exchanger and boiler with adding antifreezer to produce hot water for production and daily use.★Heat recovery boilers waste heat of exhaust  In order to make full use of the exhaust heat of the unit and improve the comprehensive utilization rate of gas, a waste heat recovery boiler is added to the exhaust system to recover the exhaust heat and genera
