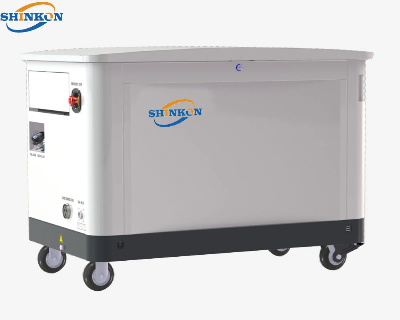

Ng+LPG+Petrol 23kw Multi-Fuel Standby Silent Power Generator Sets

Product Description Our Product Ranges:Standby LPG/Natural gas generator, power range is 6-30kw Gasoline( PET), from 1kw to 30kw, silent type Trifuel ( NG/LPG/PET), 17kw and 23kw   100% test and inspected in factory Power your appliances in as little as 10 seconds. Create steady, high quality power to protect your electronics  Ideal choice in family, store, school and wherever needed. Detailed Photos Technical Specifications:MODELSK23REG-CFUEL TYPENG+LPG+PETROLOUTPUT RATED POWER(GASOLINE)23KW  [28.8KVA]RATED POWER(LPG)22KW  [27.5KVA]RATED POWER(NG)20KW   [25KVA]RATED VOLT (V)230   [230/400]RATED CURRENT(GASOLINE)100  [41.7]RATED CURRENT(LPG)95.7  [39.9]RATED CURRENT(NG)87  [36.2]PHASESINGLE  [THREE]Engine/Alternator RPM(rpm)3000POWER FACTOR0.8ENGINEENGINE WARRANTY (YEAR)1 ENGINE PART #CG12VOLUME (cc)1216 COMPRESSION RATIO9.5:1IGNITION SYSTEMECM IGNITIONELECTRIC STARTYESSTARTING MOTOR QDY112    12V  0.8KWBORE&STROKE(mm×mm)L4-70×74ASPIRATION TYPENATURAL ASPIRATIONOIL CAPACITY(L)3.5 ROTARY OIL FILTERYESCHARGING METHOD14V/70A charging motorRECOMMEND BATTERY START CURRENT(CCA)550ACOOLING SYSTEMLIQUID COOLEDLOW OIL PRESSURE SHUTDOWNYESALTERNATORTYPESynchronous generator, a rotating magnetic fieldVOLT.REG.SYSTEMAVRBRUSHBRUSHPOLE2THD @FULL LOAD≤ 5%INSULATIONFSTATOR WINDING MATERIAL COPPERROTOR WINDING MATERIALCOPPERCONNECTION METHODDIRECT COUPLINGVOLTAGE STEADYTYPEELECTRONSensingSINGLE  [THREE]VOLTAGE ADJUSTING ± 1%GOVERNOR TYPEELECTRONNo load to full load frequency regulationSYNCHRONISMSteady frequency adjustment± 0.5%CONTROLER CONTROLER LOCATIONINSIDE,BESIDE ALTERNATORMANUFATURER/PART#HSC940AUTO/MANUAL/SHUT DOWNYESALTERNATOR VOLTAGE DETECTIONYESMAINS VOLTAGE DETECTIONYESLOW OIL PROTECTIONYESOVER FREQUENCY PROTECTIONYESLOW FREQUENCY PROTECTIONYESENCLOSURECANOPYPowder coatingWARRANTY(YEAR)1PROTECTION LEVELIP 23EMERGENCY STOP SWITCHYESFUEL SOLENOID VALVEdual solenoid valveENCLOSED MUFFLERYESSOUND INSULATIONDouble metal plate+Soundproof cottonNOISE AT NORMAL SPEED ,23ft(7M)  dB(A)70PET CONSUMPTION100%LOAD  gal/hr(L/hr)9.4NG CONSUMPTION 100%LOAD   m3/hr7.52LPGCONSUMPTION 100%LOAD    kg/hr4.00 NG PRESSURE RANGE kPa 1.3-3.5LPG PRESSURE RANGE kPa 1.7-3.5NUIT DIMENSION(L×W×H)  mm1290×825×940PACKAGE DIMENSION(L×W×H)  mm1350×880×1100NET WEIGHT( kg)422GROSS WEIGHT(kg)46220/40 GP CONTAINER20/40/40  Company Profile About Us Chongqing Shinkon Import & Export Co., Ltd is our export company under Hensen group, it is specialized in exporting products made by subsidiary factories under our group. We are one of the fast growing companies in the field of general power machinery, garden and small agricultural machinery. Its manufacturing base is located in Chongqing city, China with very convenient transportation including Chongqing to Shanghai barge routine and Chongqing-Xinjiang-Europe railway transportation etc. With over 10 years dedicated in the field, our company now becomes a professionally well-known brand with absolute advantage in R & D, marketing, and after-sale service in the field of general purpose power machinery and small agricultural machinery. Chongqing is well known for its high quality industry of gasoline engine, gasoline generator, water pumps, power tillers etc. Since the establishment of our company, we aim at providing the world with high quality products at competitive prices. We always use raw materials of high quality standard with improved processing instead of low quality which could not ensure the benefit of customers. For quality control, in order to ensure the quality of our products, we produce most of the die-casting parts and gears by ourselves. And meanwhile, we test each piece of our products before they are released to the market. Meanwhile, a well-educated and organized after-sale service team always provides professional maintenance, technical consultation and technical training. We are always here looking for distributors from all over the world for mutual-beneficial cooperation.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
