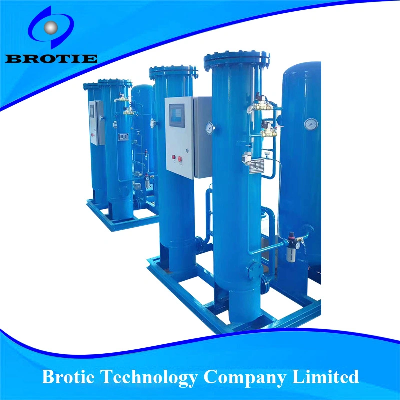

Brotie Medical Oxygen Generator

BROTIE PSA Oxygen Generator(BRHO/BRIO)  Principles:Customized PSA oxygen generator, purity 90-95% with no purification system, capacity from 1Nm3/h-50Nm3/h, pressure from 0.1bar to 150bar, uses zeolite molecular sieve as sorbent, produces oxygen by making use of the PSA principle. Professional energy saving design provided with each of BROTIE oxygen generator system, low air consumption means more economical for customers. The BRO-CONTROL system is provided, all the parameters can be read and the operation can be actualized by one touch only. Alarming system can work automatically when the purity, the capacity and pressure is lower than required, it means more reliable and more humanistic for customers.Applications:1. After the oxygen generator,  the oxygen purification system is equipped to guarantee the quality of the O2 and removing dust, eliminating bacteria and stabilizing pressure to ensure the oxygen outputted stably and meeting medical standards.                                                                                                                                          2. Users only need to turn the start/stop button to gain the oxygen with designing required flow capacity and purity within 30 minutes.                                                                3. Single line and double lines types are available for option. Users are suggested to choose the single line type when they only require a stable flow capacity; choose double lines when demand is unstable and sometimes meet extra peak values.BRHO series is for medicla purpose.BRIO series is for industrial purpose.All the models can be customized, please contact for free.ModelConstructionDimensionsInlet& OutletWeight(Kg)BRHO-1Four towers620*505*1260G1/4; G1/4226BRHO-2Four towers1000*900*1500DN15; G1/2"418BRHO-3Four towers1000*950*1580DN15; G1/2"515BRHO-4Four towers1200*1100*1800DN15; G1/2"622Two towers1050*600*1700DN15; G1/2"433BRHO-5Four towers1300*1200*1750DN25; G1/2"694Two towers1100*600*1620DN25; G1/2"459BRHO-6Four towers1300*1200*1850DN25; G1/2"749Two towers1100*600*1850DN25; G1/2"502BRHO-7Four towers1400*1300*1800DN25; G1/2"853Two towers1200*650*1650DN25; G1/2"586BRHO-8Four towers1400*1300*1850DN25; G1/2"937Two towers1200*650*1820DN25; G1/2"640BRHO-10Four towers1500*1400*1850DN25; G1/2"1076Two towers1300*700*1750DN25; G1/2"758BRHO-15Four towers1700*1550*2120DN40; G1"1352Two towers1400*750*2120DN40; G1"923BRHO-18Four towers1800*1650*2060DN40; G1"1531Two towers1550*800*2060DN40; G1"1062BRHO-20Four towers1800*1650*2250DN40; G1"1618Two towers1550*800*2250DN40; G1"1130BRHO-25Four towers1800*1650*2700DN50; G1"1899Two towers1550*800*2700DN50; G1"1327BRHO-30Four towers1900*1750*2700DN50; G1"2166Two towers1650*850*2700DN50; G1"1524BRHO-35Four towers2100*1900*2600DN50; G1"2424Two towers1750*900*2600DN50; G1"1686BRHO-40Four towers2100*1900*2900DN50; G1"2633Two towers1750*900*2900DN50; G1"1847BRHO-45Four towers2200*2000*2850DN65; G1"2831Two towers1850*950*2850DN65; G1"2167BRHO-50Four towers2100*1950*3100DN65; G1"3179Two towers1850*950*3100DN65; G1"2325BRHO-55Four towers2300*2100*3000DN65; G1"3328Two towers1900*1050*3000DN65; G1"2411BRHO-60Four towers2300*2100*3210DN65; G1"3599Two towers1900*1050*3210DN65; G1"2615/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
