Ce Approved 120kw Gas Generator with Biogas LNG CNG Methane LPG

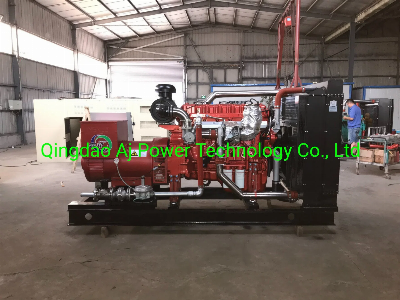

Product Details CE certificate 120KW Natural Gas Generator Dear customer, please check our 120KW Natural Gas Generator with CHP. The picture allows you to see that our CE certificate 120KW Natural Gas Generator with CHP style is very novel. CE certificate 200KW Natural Gas Generator with CHP Detailed technical parameters are attached below.   200KW Natural Gas Generator Genset Model YDNV-120 Rated Power(KW/KVA) 120/150 Rated Curent(A) 360 Dimension(mm) L(mm) 2850 W(mm) 1400 H(mm) 1950 Weight(KG) 3200     Model YDT11   Type Four-stroke,Water-cooling,Direct Injection,V8-type Rated Power(Kw/KVA) 180/225(CH4 no less than 95%) Gas Consumption(m3/h) 66 Rated Speed(rpm) 1500 Cylinder NO. 8.v Bore*Stroke(mm) 128*42 Cooling Method water-cooled Oil Consumption(g/KW.H) 2 Displacement(L) 14.618 Starting mode Electric Speed Governing Mode DV  24V           Alternator Brand FARRAND Model FLD120 Rated Power(KW/KVA) 120/150 Effciency 92.50% Voltage Regulation ±1 Voltage Regulation Brushles, Self Excitation Insulation Class H         Control System Model Smartgen HGM6110 Working Voltage DC8.0V to DC35.0V, continuous Overall Dimensions 197 mm x 152 mm x 47mm Panel Cutout 186mm x 141mm Working Condition Temperature: (-25~70)ºC; Humidity: (20~90)% Weight 0.56kg Unlike a diesel generator set, the gas system of a gas generator set is very important. And we use more high quality gas generator parts for you as following parts: Mix gas and air for combustion we use USA Brand IMPCO.  E-Throttle is German Brand BOSCH.  Regulator is Italian Brand MADAS  Spark plug is Chinese famous brand TORCH  Water temperature Sensor also is BOSCH  And other high quality parts.  Yangdong 10-30kw Natural gas generator  Gas Genset #Rated Power(Kw/Kva)Gas Engine # Dimension(mm)Weight(Kg)YDNYD-1010/12.5YD4M1D1450*700*1100510YDNYD-1515/18.75YD4B1D1700*720*1250620YDNYD-2020/25YD4102D1750*740*1250650YDNYD-2525/31.25YD4102D1750*740*1250680YDNYD-3030/37.5YD4102D1750*740*1250700 Lovol 30-100kw Natural gas generator Gas Genset #Rated Power(Kw/Kva)Gas Engine #Dimension(mm)Weight(Kg)YDNL-3030/37.5YND10041850*800*1430950YDNL-4040/50YDN10062150*800*14301100YDNL-5050/62.5YDN10062150*800*14301150YDNL-6060/75YDN1006ZD2150*800*14301200YDNL-8080/100YDN1006ZD2150*800*14301250YDNL-100100/125YDN1006ZD2200*800*14301300 VMAN 150-500KW Natural gas generator Gas Genset #Rated Power(Kw/Kva)Gas Engine #Dimension(mm)Weight(Kg)YDNV-150150/187.5DT112700*1500*18002800YDNV-200200/250DT152850*1500*19503100YDNV-300300/375DT223420*1700*21003800YDNV-400400/500DT304300*2100*25004500YDNV-500500/625DT30-14500*2100*25005000  Requirments for natural gas 1.Methane should be at least 55% 2.The natural gas temperature should be between 0-60 ºC 3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3. 4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined. 5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary. 6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S
