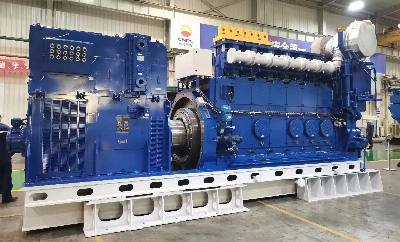

CHP Thermoelectric Generator

CHP thermoelectric generatorJichai Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adaptability, high stability and low fluctuation. The generator is desirable for industrial power solution.CHP thermoelectric generatorMAIN SPECIFICATIONS OF GAS GENERATOR SETModel2000GF-T Gas Engine ModelL20V190ZLT-1Rated power2000kW/2500KVA AlternatorSiemens SeriesRated voltage10.5k V Starting method24V DC electric startRated speed1000rpm Voltage regulationAutomaticRated frequency50Hz Cooling ModeClose type water coolRated current137.5A Heat Consumption9200kJ/kWhPower factor0.8 Lagging Dimension (mm)9583x2180x2540mmControl modeElectric control Net Weight (kg)28000MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATORVoltageStabilized regulationInstantaneous regulationRecovery timeFluctuation±2.5%+20% - 15%1.5S0.5%FrequencyStabilized regulationInstantaneous regulationRecovery timeFluctuation0-5% adjustable+10%,-10%< 7 S0.5%CHP thermoelectric generator MAIN SPECIFICATIONS OF GAS ENGINEModelL20V190ZLT-1Rated power2000kW (2500KVA)Number and layout of cylinders:20-cylinders, V-type, 60° included angleTypeFour strokes, Closed type water cooled, Turbo-charged, Electronic ignition, Electronic speed governorIgnition typeSpark plug ignitionIntake gas pressure required100-400 kPa before gas pressure regulatorBore´Stroke190´255 mmSpeed Governor(Woodward) Electric governorOil consumption£ 0.8g/kWhTotal lubricating oil capacity (Liters)600LExhaust temperature (before turbine)£ 680 °CHeavy overhauling period36,000hMAIN SPECIFICATIONS OF ALTERNATOR  Alternator modelExciting modelInsulation classConnectionCoolingStructure type1FC series(SIEMENS)BrushlessClass F3-phase, 4-wireAir cooledAVR and reactive droop regulator assembled in alternator  (Kindly Noted: data shown in above table tested under standard working condition: 25 Dec C, atmospheric pressure 100kPa, relative humidity 30%, altitude
