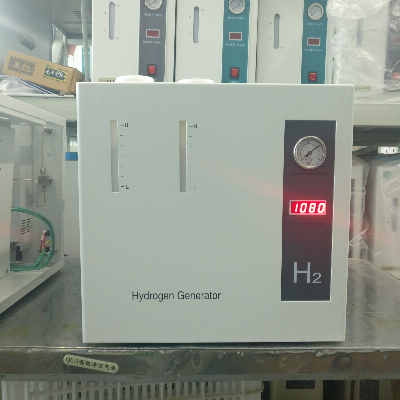

2lpm High Volume Hydrogen Generator

2LPM flow Hydrogen Generator---PEM technology, 99.999% purity Model: QL-2000 Product Description Technical Characteristics The series of products, producing highly pure hydrogen by utilizing SPE technology to electrolyze pure water (without adding alkali), are light, highly-effective, energy-saving, and environmental protection. They are advanced technology patented products. Structural Features1. Zero polar distance and highly active SPE catalytic electrodes are used.2. Plural-electrode and multiunit electrolysis cell structure with excellent chemical technological process properties of the mass and heat transfer.3. Best choice of materials for multi-electrode and pluralist electrolysis cell with excellent properties of electrochemistry, corrosion resistance and bearing deactivation.4. Complete, mature and credible automatic control system.Functions and Characteristics 1. Electrolysis of pure water(without adding alkali)to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.2. Voltage of unit cell is low, and electric resistance in the electrolysis cell is little, giving out no heat, and cycle of changing desiccants is long, producing highly pure hydrogen.3. Hydrogen is produced with stable pressure and output, output of hydrogen is controlled according to the requirements, and automatic control technology is perfect and reliable.4. Power consumption is less, and the electrolysis is efficient.Detailed Photos Applied Area This kind of products can also be used in lab hydrogenation, supplying hydrogen for metal hydride alloy, flame reduction, reduction air protection, solar power, storing power for wind power generation, etc. Technical ParametersProduct Parameters TypeQL-2000 Output flow(ml/min)0-2020 Output pressure(Mpa)0-0.4 H2 purity(%)>99.999 Input power(w)=1MΩ/cmContour Dimension(LxWxH mm)500×445×820Weight(kg)  30 RegardsKevin ZhangShandong Saikesaisi Hydrogen Energy Co.,Ltd  sales01ATql-spe.   comNO.1999 Dazheng Road, High-tech district,Jinan,China/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
