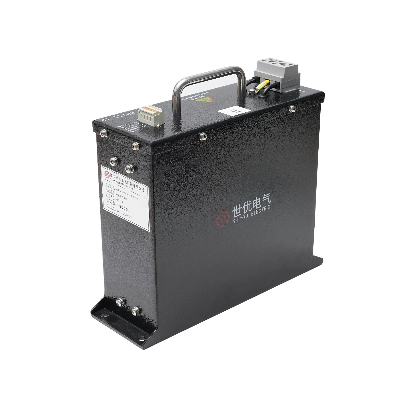

Supercapacitor Module Ultracapacitor Module

Product DescriptionThe supercapacitor module SYE-90V series have high power density and low equivalent series internal resistance. Specifically designed for backup power of pitch systems in wind turbines.The SYE-90V series supercapacitor module consists of 36 monomers connected in series. All monomers, equalization circuits and monitoring circuits are soldered on a PCB board. The equalization circuits include active equalization and passive equalization circuits. Monitoring circuits include overvoltage monitoring, over temperature monitoring, reverse polarity monitoring, ESD, EFT and anti-surge.Key features:Low internal resistance, high power densityLong life designPassive and active equalization for each monomerOvervoltage monitoring, over temperature monitoring, reverse polarity monitoring for individual monomerESD (electrostatic Protection grade III standard)EFT (electrical fast transient pulse train)Surge arrester (2000V)I/O output interfaceHousing material Q235A powder coated, robust and corrosion resistantDegree of protection IP20 Detailed Photos Product ParametersType90V/9.6F90V/11.1FCapacityRated capacity(25°C)9.6F11.1FTolerance range0%~20%0%~20%VoltageRated voltage 90V90VMaximum normal operating voltage97.2V97.2VResistanceDC internal resistance (25°C)≤130mΩ≤130mΩTemperatureOperating temperature range-40~+65°C-40~+65°CStorage temperature range-40~+70°C-40~+70°CCurrentMax.continuous operating current(ΔT=15°C)21A21AMax.continuous operating current(ΔT=40°C)34A34AMax.peak current, 1s220A220ALeakage current≤30mA@90V≤30mA@90VEnergyStored energy10.8Wh12.5WhEnergy density1.44Wh/Kg1.6Wh/KgThe life in high temperature65°C, rated voltage, after 1500 hours operation.Variation in capacity|△C/CR|≤20%Internal resistance variation|△ESR/ESRR|≤100%The life in normal temperature 25°C, Over 10 years of operation at rated voltageVariation in capacity|△C/CR|≤20%Internal resistance variation|△ESR/ESRR|≤100%Cycle test25°C at constant current, 1,000,000 cycles from rated voltage to 1/2 rated voltageVariation in capacity|△C/CR|≤20%Internal resistance variation|△ESR/ESRR|≤100%Power density2225W/Kg Application Case  CertificationsIt has passed type test.NoStandardItemSIS - 2023-001-010-1011) IEC 62391-1-2006 Fixed electric double-layer capacitors for use in electronic equipment -Part l:Generic specification1.Capacity2.Internal resistor3.Self dischargeSIS - 2023-001-010-2011) GB/T 176262-2018 Electromagnetic compatibility-Testing and measurement techniques-Electrostatic discharge immunity test2) GB/T 17626.4-2018 Electromagnetic compatibility-Testing and measurement techniques-Electrical fast transient/burst immunity test3) GB/T 17626.5-2019 Electromagnetic compatibility-Testing and measurement techniques-Surge immunity test1.Electrostatic discharge immunity test2.Electrical fast transient/burst immunity test3.Surge immunity test    FAQQ: How do you handle shipments?A: 1. For small orders, we send goods by FedEx, DHL, UPS, express service on door to door term.2. For large shipments, we send goods by sea or by air in containers.Ps. it's highly recommended to delegate your own forwarders to handle shipments and FOB Shenzhen is widely adopted by our customers. Q: What is your delivery time?A: Normally, we need about 30 days to prepare your goods. For orders in large quantities and customized orders, the time for shipment will be a little longer.Q: What is your term of payment?A: Our standard term is 100% TT advance with order. However, it is negotiable under the condition of long-term strategic cooperation. Q: What is your customized service?A: With abundant experience in various kinds of OEM and ODM projects, we provide flexible and professional customized service. The MOQ varies based on your customized requirements.Q: How long is the warranty?A: The warranty of our products is 24 months upon the receipt of your shipment under normal circumstances.Q: What is your guarantee of after-sale service?A: In response to every single after-sale request within the warranty, we will appoint a one-on-one technician for timely online aid.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
