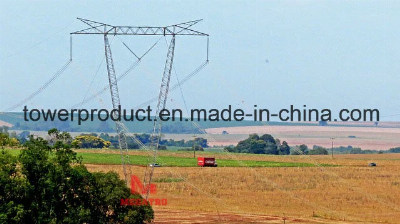

Power Transmission Tower (MG-EA001)

Our company, QINGDAO MEGATRO HOLDING, CO., LIMITED, is a full service engineering and manufacturing company with a global reputation for delivering excellence and innovation in tower supply. We have over 10 years of experience and innovation in engineering, designing, and building towers.MEGATRO fabricates every structure from the ground up. Our power transmission line steel towers or telecom tower or other structures are constructed of solid steel legs and angle iron cross members & pipes. Structures can reach heights up to 200 meter, or we can design as per client special requirements.Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & angular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software. Our transmission tower or telecom tower structure shall be designed according to load combinations given as per IEC 61936-1 and as illustrated below:Normal loads1 Dead weight load2 Tension load3 Erection load4 wind load Exceptional loads1 Switching forces2 short-circuit forces3 Loss of conductor tension4 Earthquake forcesWe design all kinds of towers and posts or other steel structures for:a.      Telecomsb.      Power transmissionc.      TV and Radio Broadcastd.      Roads and City Development  Our complete selection of towers includes:a.      Self-supportingb.      Monopolesc.      Guyed towersd.      Custom-designed radar towerse.      Broadcast towersf.        Power transmissionMEGATRO is one of the few manufactures who assemble a face of every tower section. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. Till now Megatro can produce and take any power transmission line tower, substation and other supports. Tower support power voltage as follow:4kv, 4.8kv, 12kv, 13.2kv, 22KV, 23kv, 24KV, 24.9kv, 27.6kv, 33kv, 34.5kv, 35kv, 46kv, 66kv, 69kv, 110kv, 115kv, 132kv, 138kv, 150kv, 154kv, 161kv, 220kv, 230kv, 275kv, 287kv, 330KV, 345kv, 380kv, 400kv, 500kv, 735kv, 750kv, 765kv, 800kv, 1000kv, 1100kv, towers including angular tower, tubular tower; SST tower and guyed tower; Single circuit tower, double circuit tower and multi - circuit tower; Lattice tower or monopole tower; H- frame, M-type tower, T-type tower, Y-type tower; And every type of utility poles, transmission &distribution poles, switch poles; Substation frameworks etc.In tower shape ,we have type as follow:(1) horizontal configuration(2) vertical configuration(3) delta configuration(4) Self-supproted delta structure(5) H-Fram structure(6) Guyed-vice structure(7) Monopole typeMEGATRO is fully equipped and qualified to carry out Design Engineering services which includes:√ Overhead Transmission line steel tower & Telecom steel tower   Basic Design and Analysis√ Shop Erection Drawings√ As-Built Drawings  MEGATRO performs in-house design activities specializing in electrical overhead transmission &telecom tower steel works, which include wind and earthquake loading, static analysis, stress analysis by finite element methods and fatigue.  Our Engineering Department is boasting of highly qualified engineering who are conversant with international codes and standards. The work is carried out with extensive use of CAE/CAD via a large of computer network. The computer hardware & drafting software are liked to the CNC workshop equipment for downloading of information thereby eliminating error and saving valuable production time. MEGATRO is one of the few manufactures who assemble a face of  power transmission steel tower. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all power transmission steel towers are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. MEGATRO' power transmission steel towers systems can accommodate a variety of cross-arm. MEGATRO also offers a wide variety of accessories and mounts.Other information:Availability size: Based on the customer's requirements.Material: Chinese material or as per clients requirementPackage: Both parties discuss before deliveryPort of Loading: Qingdao PortLead Time: One month or based on the customer's needsMinimum order: 1 setFabrication standard: Chinese Standard or other sta
