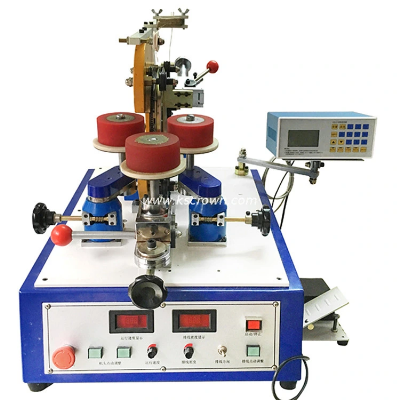

Wl-2630 Automatic Toroidal Transformer Coil Winding Machine Coil Winder

 WL-2630 Automatic Toroidal transformer coil winding machine coil winderFeature:1.Stable pulling force, small inner diameter, fast winding speed, no damage to the wire2.It is suitable for winding products with small diameter and many turns, such as primary and secondary windings of small toroidal transformers, primary windings of high-power toroidal transformers, and transformer coils.3.The wire storage ring of different widths can be replaced on the same model to meet the wire storage capacity and complete inner diameter of products of different sizes, and the application range is wider.4.Suitable for winding enameled copper wire, enameled aluminum wire, steel wire, nylon wire and more, which can be used for coil processing of products in various industries. Specifications:ModelWL-2610WL-2630WL-2631WL-2700WL-2800Winding methodside slip typeside slip typeside slip typeside slip typeside slip typeFinished outer diameter30/80 60/12060/12060/20060/200Minimum finished inner diameter18 30353550Final completion height408080100120Suitable winding diameter range0.12-0.50.2-0.70.2-0.70.2-0.750.35-0.9Storage ring diameter180195 195230260Storage ring width3-63-89-129-1512-18Max  speed800 rpm800 rpm800 rpm 700 rpm 600 rpmWorking voltage220V/50Hz220V/50Hz220V/50Hz220V/50Hz220V/50HzDimensions480×450×600500×600×700500×600×700500×600×750500×600×800Weight90 kg90 kg90 kg100 kg110 kgProduct Show:Application Terminal:  Certification below Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .ALso there are many models for your reference.You may also like          Company Information Our service1. On-time delivery and the shortest delivery time.2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.3.OEM and customized service. ---Purchase guidanceIf you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you. ---Technical SupportUser manuals will go with relative machines.If you have any problem with operation, please feel free to contact us. ---QC Check before shipmentAll products will be checked before delivery.Contact:Pls contact Suzhou Crown Kitty for price inquiry or any other questions/doubt. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
