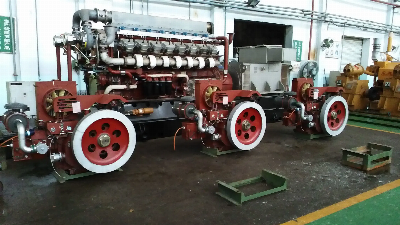

Dynamic 1200kw Biomass Gas Generator

Manufacturer Dynamic EnergyGenset model 1200GFZ-PWT-TEM2Engine model T16V190ZLDK-2Engine type 4 stroke, turbocharged and intercooledAlternator model JFG 1200-6/10500Alternator type TEAAC (Totally Enclosed Air To Air Cooled)Breaker panel model GCBPField control panel  FCP1-TEM2Local control panel LCP1-TEM2Rated powerkW1200Rated currentA79Rated voltageV11000Rated power factor  cosφ0.8 (lag)FrequencyHZ50Fuel gas consumptionMJ/(kW·h)9Lubricant consumptiong/(kW·h)≤0.8Electrical efficiency%> 41Genset performance grade G2Start-up method DC 24V electric start motorStart-up control   Manual/AutomaticWiring method 3 phase 3 line/3 phase 4 lineStable speed droop %≤5Cooling method Closed loop, with fan radiatorNoise level 105 db @ 1 meter away from non-containerized genset85 db @ 1 meter away from containerized gensetGenset vibration ≤7.2mm/sCoupling between engine and alternator Elastic couplingDimension (L×B×H)(for transportation)mm6858×1900×2510Dimension (L×B×H)(after installation)mm8945×2350×2610Weight (with container)kg24000General engine specification:Engine manufacturer Dynamic EnergyEngine type 16V190Working principle 4-stroke, with turbocharger, and intercoolerConfiguration 16 cylinders, V-60°No. of cylinders 12Bore mm190Stroke  mm210Compression Ratio 9: 1 or as customer requirementTotal displacementL95.27Rated power  kW900-1400Rated speedr/min1000 for 50HZ application1200 for 60HZ applicationIgnition method Spark Plug IgnitionStarting method 24VDC motorPower output method Flywheel outputApplications:Applicable fuel type:Well head gas/natural gas,Biogas/landfill gas,Industrial flue gas (H2, CO, CH4)Typical scenario:Natural gas and coal mine gas power generation plant from 2MW to 20MWBiogas and landfill gas power generation for renewable energy projectsPower generation with well head gas in oil & gas industry,Compressor unit, or other rotating machineries (with shaft power input requirement bellow 1200KW).16V190 gas engines have following features:Compact structure, modern design, robust and extremely reliable in continuous operation.Suitable for continuous operation, lower noise and vibration compared with higher speed engines.Ideal power for continuously operating generators, and compressors.For generator set application, power ranges from 800-1200KW.Dynamic EnergyAs a professional gas engine manufacturer, Dynamic Energy will continue bring innovative power sulutions for the world. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
