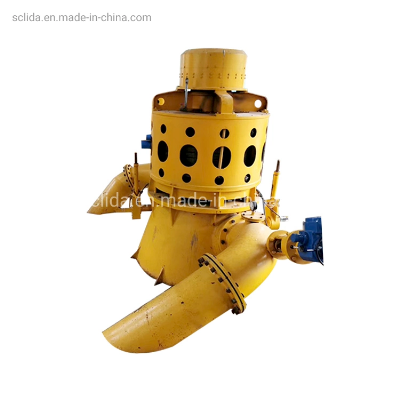

Hydro Kaplan Generator

hydro Kaplan generatorKaplan turbine is a kind of turbine suit to low water head 3-45 meters, and with certain big flow, normally divided into fixed blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 80cm to 4meters, with rated output 50Kw to 20Mw.Axial Flow Turbine/Kaplan Turbine Axial Flow Turbine is used in hydropower plants with low and middle water head commonly ranging from 3m to 30m. It can be divided into Propeller /Fix Blade Type (ZD) and Kaplan/ Movable Blade Type (ZZ), Propeller turbine is used in the power plant whose flow varies little.Kaplan turbine is used in the power plant with the flow varying much; its adjustable blades can change the angle automatically so that it can guarantee high efficient operation under different flow and load.MaterialSteel plate/Stainless steelShaft typeVertical/HorizontalPower range50KW-20MWSpeed range150RPM-1000RPMInlet directionVertical/HorizontalNozzle numberSingle/MultiEfficiency85%-93%Runner range40cm-500cmSpiral casing typeMetal/ConcreteApplicationOn-grid/Off-gridKaplan turbines are available in three basic configurations; vertical axis, horizontal axis (also called S-turbines) and bulb turbines.Why choose us? 1.More than 30 years of industry experience, install commissioning more than 150 equipment each year2.Provide complete proposal for hydro power plant from water to wire3.Abundant foreign power plant project implementation experience4.Design and manufacture of hydro power generator with voltage 400V NameHorizontal Francis water turbine generator unitNo.ItemSpecification1Place of origin Sichuan, China (Mainland)2Brand nameWa Wu Shan3ColorGreen, blue & Orange4Frequency50Hz, 60Hz5Turbine capacity50-20000KW6Generator connectedSynchronous generator7Service life30-50years8MOQ 1 set9Payment termsL/C,T/T10Delivery time6 months after 30% down payment11PackingPacked in wooden case, complying with export packing standard12PortNegotiation or required by the customers13Inlet valve connectedElectric butterfly valve or Hydraulic hammer butterfly valve14Speed governorSpeed governor with PLC interface15Runner material ZG0Cr13Ni4Mo16Supply ability150 set/year17Exported areaTurkey, Vietnam, Indonesia, Albania18SuperiorityWide range for different water head Easy operation Optimum efficiency up to 94% Stable operation up to 50 years R & D support ISO9001:200819Model numberWater turbineSynchronous generatorHLA130-WJ-97SFWE-K-5000KW-8/2150HLA542-WJ-100SFWE-K-3200KW-8HLA575C-WJ-60SFWE-K-1000KW-6/1180HLA194-WJ-84SFWE-K-3200KW-8/1730HLD50-WJ-57SFWE-K400-6/850HLA708A-WJ-53SFWE-K-400-6/850HLD307C-WJ-64SFWE-K1400-6/1180HLA696-WJ-68SFWE-K-2500KW-8/1730HLA253-WJ-71SFWE-K-3200KW-6/1730/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
