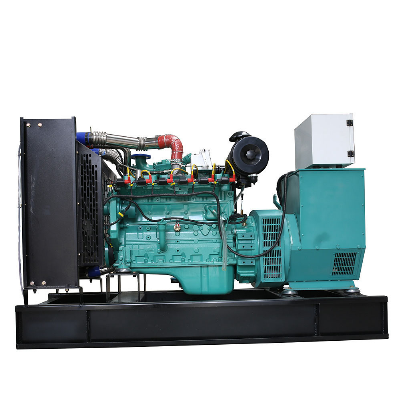

Biomass Fired Power Electricity Generation Plant Wood Pellet Electric Gas Generator

Biomass fired power electricity generation plant wood pellet electric gas generatorRequirments for biomass:Biomass gas should be subject to appropriate tar cleaning, filter, gas-liquid separation, and pressure regulation.If the temperature is too high, should also be through cooling treatment, and ensure no liquid ingredients in the gas.Gas temperature≤ 40ºC, gas pressure 2.5~10kpa, pressure change rate≤1kPa/min, tar content≤50mg/Nm3,H2S≤50mg/Nm3, NH3≤20mg/Nm3, moisture content≤20mg/Nm3, impurity size≤5μm,impurity content≤30mg/Nm3, calorific value≥4MJ/ Nm3.Parameter: Model Number (Engine Type)PTG-XXGF(Styer,Jichai,Zichai)Prime Power/Standby Power10kW-500kW/110kW-550kWRated Speed1500/1800RMPRated Frequency50/60HzRated Voltage400V/230V PhaseAC 3-Phase, 4 wireGas consumptionBiomass:2m3.kw/hStarting SystemDC 24V electric motorCooling methodWater-cooledAlternatorFaraday,SiemensExciting methodbrushless Our AdvantagesModels listCompany Information and CertificatesOptional parts:  FAQ:1.What's your power range of gas generators?Re: We can offer the range from 10kW~1000kW. 2.What's your delivery time?Re: 7-25 work days after we get the down payment, if your order is some special engine and alternator, then the delivery time is longer.3.What's your payment?Re: We accept T/T, L/C.4.What's your warranty?Re: All our products we offer one year warranty or 1500 hours which comes first.5.What's your MOQ?Re: One set. 6.What's the frequency of gas generators?Re: 50Hz/60Hz.7.Do you have single phase or three phase gas generators?Re: Sure, we have single phase and three phase gas generators. 8.What's the voltage of your diesel generator?Re: 220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
