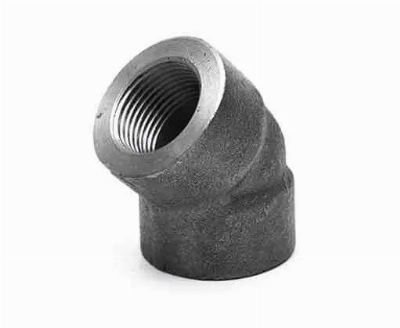

A105N ASME B16.11 Forged Threaded NPT Fitting Elbow Upon request from industry and government, ASME has been defining piping safety since 1922.This Standard covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and threaded forged fittings. These fittings are designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket-weld end fittings. B16.11 is to be used in conjunction with equipment described in other volumes of the ASME B16 series of standards as well as with other ASME standards, such as the Boiler and Pressure Vessel Code and the B31 Piping Codes.Specification Chart:ASME B16.11 FittingsAvailable Sizes From 1/8 inch to 4 inchManufacturer TypesElbow (45 Deg/ 90 Deg)Coupling (Full/ Half)Cross (Equal/ Reducing)Union (Male/Female), Outlet (Lateral/Branch)Tee (Equal/ Reducing)Threaded Pipe Cap Plug (Hex Head/ Square Head/ Round Head/ Bull)Method TypesThreaded (NPT)Socket WeldBSPTBSPType Of StandardsBs3799ASME B16.11MSS SP 83MSS SP 95MSS SP 79JIS B2302Pressure ClassSW Fitting = Class 3000/ Class 6000/ Class 9000NPT Fitting = Class 2000/ Class 3000/ Class 6000Test CertificatesEN 10204/3.1BRaw Materials Certificate100% Radiography Test ReportThird Party Inspection Report, etcProduction TechniqueForged/ Heat treated and machinedQuality Assurance Nace Mr 01 75Sour ServiceImpact Test As Per Ug 84Macro Structure AnalysisHydrogen Induce Cracking Test (Hic)Sulphide Stress Cracking Test (Sscc)Cryogenic Services (Cryo),hydrogen Services (H2)Helieum Leak TestDye Peniterant Test (Dp)Magnetic Partius Test (Mp)Post Weld Heat Treatment (Pwht)Ultrasonic Test (Ut)Hydro Test, Etc.ApplicationPower/ gas/ petroleum/ chemical/ metallurgy/ shipbuilding etc. Packing: carton box packed into seaworthy plywood case Production process/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
