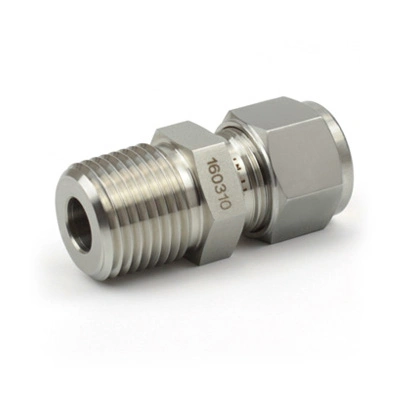

Stainless Steel Double Ferrules Tube Fittings Compression Tube Fitting Male ConnectorFeatures: Twin ferrule fittings provide metal-to-metal seal connections, non-elastomeric seals for leak-free connections Hikelok twin ferrule fittings are designed to have a maximum allowable working pressure that is higher than that of any tubing Industry standard design for all instrumentation grade tubing Stainless steel tube harderness: the hardness of the tube shall be not greater than 85 HRB Available in sizes from 1/16 to 2in and 2 mm to 50 mm Hikelok fittings materials include 316 stainless steel, steel, brass, aluminum, nickel-copper, Hastelloy C, 6Mo, Incoloy 625 and 825 Hikelok special treated back ferrule is to provide secure Silver coated threads to reduce galling Leak-proof joints capable of satisfying high pressure vacuum and vibration applications Performance: Hydraulic proof pressure test (1.5 times the maximum permissible working pressure): no leakage Dismantling and reassembly test (dismantle 10 times): no leakage Minimum hydrostatic pressure test (4 times the maximum permissible ambient pressure rating): no leakage Vacuum test (1 × 10−4 mbar or greater): the leak rate less than 1 × 10−8 Maximum static gas pressure test (with nitrogen gas to 150% of pressure rating): no visible bubbles Hydraulic impulse and vibration test (the pressure impulses at between 0.5 Hz and 1.7 Hz and the vibration at between 23 Hz and 47 Hz): no leakage Thermal cycle test (ambient to +80 °C and then to -25 °C with a hydrostatic pressure): no evidence of leakage Pneumatic pressure vibration test (The frequency of vibration shall be set at 45 Hz and complete 20 × 106 cycles): without failure Fire test (in accordance with BS ISO 19921): no leakage Corrosion resistance test (the duration of exposure at least 168 h): no visible evidence of corrosion Deep water submersion test (equivalent to 3048 m of sea water): no helium detectedCompany Introduce:Introduction of Hikelok® Brand1.Established time: in 20112.Experience/Advantage:focused on precision fluid fittings and valves for more than 10 years.We enjoy a good reputation in the foreign business .3.Product's style is similar to well-known brand Swagelok ®and Parker ®.4.Products introduction:the main products of hikelok include ball valves,needle valves,instrument manifolds,bellows valves,check valves,twin ferrules series tube fittings,instrument pipe fittings,weld fittings and other kinds of instrumentation valves and fittings.5.Body materials: stainless steel,alloy steel, brass,special alloy and carbon steel6.Standard products:ANSI,ASME,ASTM,API,MSS,ISO,EN,GB,JB,HG ect.7.Application:widely used in power generation,petroleum,petrochemical,natural gas, semiconductor,laboratory,shipbuilding, steel,chemical industry and other fields8.Certificate:ISO9001 ,2015;ISO14001;ISO45001;ABS;CE Certifications:ISO9001 ,2015;ISO14001;ISO45001;ABS;CE Our Services: From quote to delivery, we can provide the detailed support you need:1. CAD drawing2. P&ID3. Component selection4. Bill of material5. Professional services such as bending and welding6. Testing to guarantee the system7. Professional packaging and delivery8. Give you solution within 24 hours/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
